Belarus 802
The Belarus 802 is a tractor produced by Belarus. It is equipped with a 289.8 ci 4.7 L engine. The rated power output is 85 hp 63.4 kW. Transmission: 18 forward and 4 reverse. Operating weight: 7400 lbs 3356 kg.
Engine Power
85 hp
63.4 kW
Fuel & Capacities
34.3 gal
129.8 L
Transmission
18 forward and 4 reverse
Operating Weight
7400 lbs
3356 kg
Belarus 802 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1990 - 1993 | 1990 - 1993 |
|---|
Production | |
|---|---|
Manufacturer | Belarus |
Built in Minsk, Belarus | |
Original price was $19,000 in 1993 | |
Variants | |
|---|---|
802 | 2WD |
822 | 4WD |
Belarus 802 Engine | |
|---|---|
Belarus 4.7L 4-cyl diesel | |
Engine details ...  |
Belarus 802 Transmission | |
|---|---|
18-speed | |
Transmission details ...  |
Belarus 802 Power | |
|---|---|
Engine | 85 hp
63.4 kW |
PTO (claimed) | 74.8 hp
55.8 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | spur gear |
Differential lock | mechanical rear |
Power steering | |
Disc brakes | |
Cab standard. | |
Capacity | |
|---|---|
Fuel | 34.3 gal
129.8 L |
Hydraulic system | 5.4 gal
20.4 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5.4 gal
20.4 L |
Pressure | 2274 psi
156.8 bar |
Valves | 3 |
Pump flow | 11.8 gpm
44.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift (at ends) | 4400 lbs
1995 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2068 |
1000@2158 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Weight | 7400 lbs
3356 kg |
Front tire | 9.2x20 |
Rear tire | 15.5x38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
References | |
|---|---|
 | |
Operators Manual 500 Series, 800 Series and 900 Series Tractors (904805) published in 1992 | |
Belarus 822 802 published in 1988 |
Engine
Engine Detail — 289.8 ci / 4.7 L Diesel
Manufacturer | Belarus |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 289.8 ci
4.7 L |
Bore/Stroke | 4.33x4.92 inches
110 x 125 mm |
Power | 85 hp
63.4 kW |
Air cleaner | oil bath |
Rated RPM | 2200 |
Torque | 197 lb-ft
267.1 Nm |
Torque RPM | 1000 |
Starter volts | 24 |
Oil capacity | 15.8 qts
15.0 L |
Coolant capacity | 21.1 qts
20.0 L |
Transmission
Transmission — 18 forward and 4 reverse
Gears | 18 forward and 4 reverse |
Clutch | 325mm dry disc |
Oil capacity | 42.2 qts
39.9 L |
With 15.5-38 rear tires. | |
 | |
Dimensions
Belarus 802 Tires | |
|---|---|
Standard tires (ag) | Front: 9.2x20. Rear: 15.5x38 |
Dimensions | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Shipping weight | 7400 lbs
3356 kg |
Photos

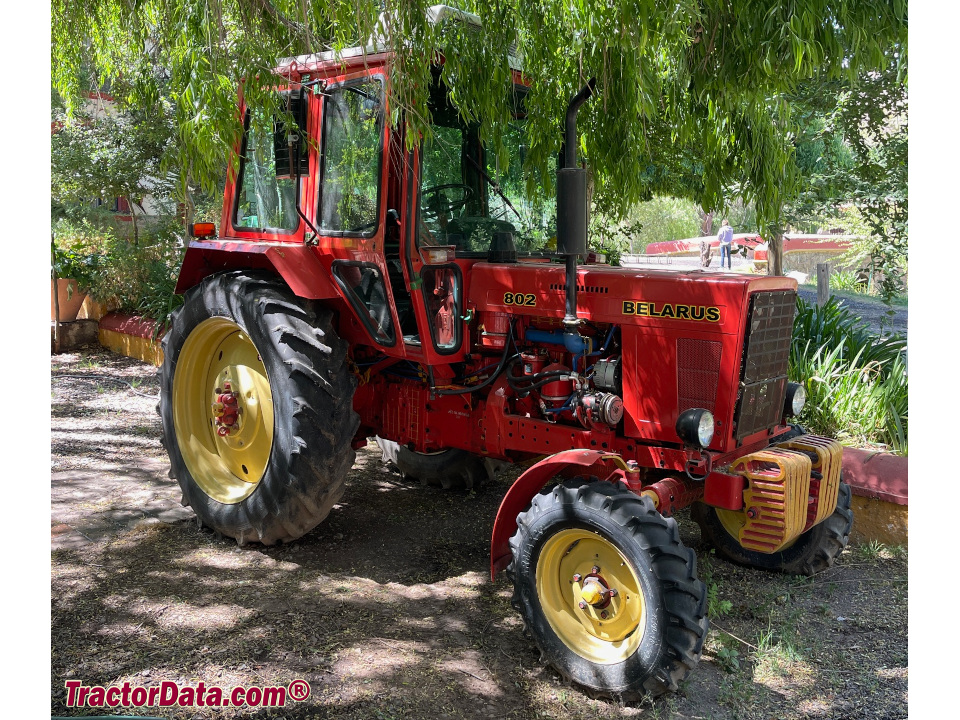

Belarus 802 tractor.
