CaseIH 1394

The CaseIH 1394 is a tractor produced by Caseih. It is equipped with a 219 ci 3.6 L engine. The rated power output is 77 hp 57.4 kW. Transmission: Hydra-Shift. Operating weight: 6520 to 7160 pounds.

Overview

	1985 - 1988 94 SeriesUtility tractor
1985 - 1988
94 Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Original price was $22,000 in 1988

CaseIH 1394 Engine
Case 3.6L 4-cyl diesel
Fuel tank	19 gal 71.9 L
	26.4 gal (with cab) 99.9 L
Engine details ...

CaseIH 1394 Power
Engine	77 hp 57.4 kW
PTO (claimed)	65 hp 48.5 kW

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Drum brakes
Cab with air-conditioning optional.

Hydraulics
Type	open center
Pressure	2550 psi 175.8 bar
Valves	1 to 3
Total flow	7.7 gpm 29.1 lpm
	15.3 gpm (tandem) 57.9 lpm
Steering flow	7.7 gpm 29.1 lpm
Steering press.	1500 psi 103.4 bar

Tractor hitch
Rear Type	II/I
Rear lift (at ends)	5,000 lbs 2268 kg
Rear lift (at 24"/610mm)	2,990 lbs 1356 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	83 inches 210 cm
4WD Wheelbase	84.5 inches 214 cm
Weight	6520 to 7160 pounds
Front tire	7.50-16
Rear tire	13.6-36
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	45
	65 (heavy duty)
Battery CCA	420
	550 (heavy duty)
Battery volts	12
Battery AH	96
	128 (heavy duty)

References
1985 Farm Equipment Buyer's Guide published by CaseIH

Engine

Engine Detail — 219 ci / 3.6 L Diesel

Manufacturer	Case
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	219 ci 3.6 L
Bore/Stroke	3.937x4.50 inches 100 x 114 mm
Power	77 hp 57.4 kW
Compression	16:1
Rated RPM	2200
Torque	200.6 lb-ft 272.0 Nm
Torque RPM	1400
Starter volts	12
Oil capacity	7.8 qts 7.4 L
Coolant capacity	15 qts 14.2 L

Transmission

Transmission options
12-speed synchromesh
12-speed partial power shift

Transmission — 12 forward and 4 reverse synchromesh

Type	synchromesh
Gears	12 forward and 4 reverse
Oil capacity	28.9 qts 27.4 L

Transmission — Hydra-Shift

Transmission	Hydra-Shift
Type	partial power shift
Gears	12 forward and 4 reverse
Oil capacity	28.9 qts 27.4 L

Dimensions

CaseIH 1394 Tires
2WD Ag front	7.50-16
2WD Ag front	11.2-24
4WD Ag front	12.4-24
Ag rear	13.6-36
	16.9-30
	16.9-34
	13.6-38

Dimensions
2WD Wheelbase	83 inches 210 cm
4WD Wheelbase	84.5 inches 214 cm
Length	143 inches 363 cm
Width	70 inches 177 cm
Height (cab)	100 inches 254 cm
2WD Ground clearance	15 inches 38 cm
4WD Ground clearance	13.5 inches 34 cm
2WD Front tread	52 to 72 inches 132 to 182 cm
4WD Front tread	60 to 76 inches 152 to 193 cm
Rear tread	56 to 80 inches 142 to 203 cm

CaseIH 1394 Weight
2WD synchro	6520 lbs 2957 kg
2WD Hydra-Shift	6695 lbs 3036 kg
4WD synchro	6980 lbs 3166 kg
4WD Hydra-Shift	7160 lbs 3247 kg
Max capacity	10,000 lbs 4536 kg
Max Drawbar	3,000 lbs 1360 kg
2WD Max front axle	4,500 lbs 2041 kg
4WD Max front axle	5,000 lbs 2268 kg
Max rear axle	9,000 lbs 4082 kg

Photos

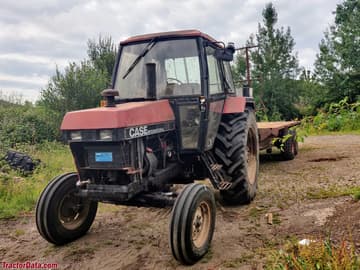

CaseIH 1394
