Bobcat CT445

The Bobcat CT445 is a tractor produced by Bobcat. It is equipped with a 134.3 ci 2.2 L engine. The listed engine power is Diesel (listed): 45 hp / 33.6 kW. Transmission: 12 forward and reverse. Operating weight: 1,118 lbs 507 kg.

Engine Power
Diesel (listed): 45 hp / 33.6 kW
Fuel & Capacities
11.9 gal 45.0 L
Transmission
12 forward and reverse
Operating Weight
1,118 lbs 507 kg

Overview

Bobcat CT445 tractor photo
2008 - 2013 Compact Utility tractorDaedong built Compact Utility tractor Daedong built
Production
Distributor
Bobcat
Manufacturer
Daedong
Compact Utility tractor
Built in Daegu, South Korea
Variants
CT445SST
shuttle shift
Bobcat CT445 Engine
Daedong 2.2L 4-cyl diesel
Fuel tank
11.9 gal 45.0 L
Engine details ...
Bobcat CT445 Power
Engine
45 hp 33.6 kW
PTO (claimed)
34 hp (hydro) 25.4 kW
36.5 hp (shuttle) 27.2 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Differential wet disc brakes
ROPS. Cab optional with heat and air-conditioning.
Hydraulics
Valves
1 or 2
Pump flow
9.5 gpm 36.0 lpm
Total flow
16.1 gpm 60.9 lpm
Steering flow
6.6 gpm 25.0 lpm
Tractor hitch
Rear Type
I
Rear lift (at 24"/610mm)
1,870 lbs 848 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540
Mid PTO
optional
Mid PTO Type
2000
Dimensions & Tires
Wheelbase
73.8 inches 187 cm
Weight
3881 to 4260 pounds
Front tire
8x16
Rear tire
13.6x24
Full dimensions and tires ...
References
CT445 references literature
Compact Tractors published in 2010, by Bobcat

Engine

Engine Detail — 134.3 ci / 2.2 L Diesel

Manufacturer
Daedong
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled inline
Displacement
134.3 ci 2.2 L
Power
45 hp 33.6 kW
Starter
electric
Starter volts
12

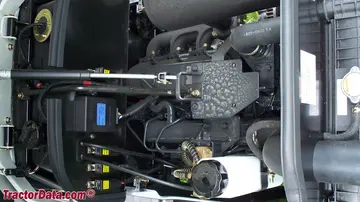

Bobcat CT445 Engine
Bobcat CT445 engine image
Image courtesy of Greg W.

Transmission

Transmission options
hydrostatic
12-speed shuttle

Transmission — infinite forward and infinite reverse (3-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and infinite reverse (3-range)
CT445 hydrostatic speeds

Transmission — 12 forward and reverse shuttle

Type
shuttle
Gears
12 forward and reverse
The shuttle shift option was added in 2010 with the CT445SST.
CT445 shuttle speeds

Dimensions

Bobcat CT445 Tires
Ag front
8x16
Ag rear
13.6x24
Lawn/turf front
29x12.5-15
Lawn/turf rear
21.5Lx16.1
Industrial front
10x16.5
Industrial rear
14.9x24
Dimensions
Wheelbase
73.8 inches 187 cm
Length
134.3 inches 341 cm
Width
69 inches 175 cm
Height (ROPS)
95.5 inches 242 cm
Height (cab)
94.7 inches 240 cm
Weight
3,881 lbs (ROPS) 1760 kg
4,260 lbs (cab) 1932 kg
Ground clearance
14 inches 35 cm

Attachments

Attachment overview
Front-end loader
Backhoe
Bobcat 7TB Backhoe
Backhoe type
Bobcat 7TB Backhoe
Weight
1,047 lbs 474 kg
Digging depth
90 inches 228 cm
Reach from pivot
117.6 inches 298 cm
Bucket force
2,827 lbs 1282 kg
Dipperstick force
2,022 lbs 917 kg
Bobcat 8TB Backhoe
Backhoe type
Bobcat 8TB Backhoe
Weight
1,118 lbs 507 kg
Digging depth
102 inches 259 cm
Reach from pivot
135.13 inches 343 cm
Bucket force
4,156 lbs 1885 kg
Dipperstick force
2,183 lbs 990 kg

Photos

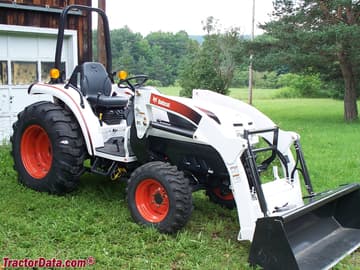

Bobcat CT445 compact tractor with TL9 front-end loader.

Bobcat CT445 compact tractor with TL9 front-end loader.

Bobcat CT445 dashboard.

Bobcat CT445 dashboard.

Recommended Implements & Sizing Guide

Engineering recommendations for Bobcat CT445 based on its 45 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Bobcat CT445.

Estimated Continuous Field Runtime: 5.1 hrs

Approximately 5.1 hours of continuous field operation at ~75% rated power on a full tank (11.9 gal / 45 L).

Estimated 75% Load Fuel Burn~2.3 gal/hr (8.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Bobcat CT445 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Bobcat CT445.

Converted Equivalents:

Horsepower (HP)45 hp
Kilowatts (kW)33.6 kW
Metric Horsepower (PS / CV)45.6 PS
