Massey Ferguson 1160

The Massey Ferguson 1160 is a tractor produced by Massey Ferguson. It is equipped with a 136.5 ci 2.2 L engine. The listed engine power is Diesel (listed): 41 hp / 30.6 kW. Transmission: 16 forward and reverse. Operating weight: 3848 lbs 1745 kg.

Engine Power

Diesel (listed): 41 hp / 30.6 kW

Fuel & Capacities

12.7 gal 48.1 L

Transmission

16 forward and reverse

Operating Weight

3848 lbs 1745 kg

Overview

	1992 - 1999 1100 SeriesCompact Utility tractor 1100 Series Compact Utility tractor

Production
Manufacturer	Massey Ferguson
Compact Utility tractor
Original price was $24,700 in 1999

Variants
TA417	similar Iseki model

Massey Ferguson 1160 Engine
Isuzu 2.2L 4-cyl diesel
Engine details ...

Massey Ferguson 1160 Transmission
16-speed synchronized shuttle
Transmission details ...

Massey Ferguson 1160 Power
Engine	41 hp 30.6 kW
PTO (claimed)	37 hp 27.6 kW

Mechanical
Four-wheel drive
Steering	power
Mechanical wet disc brakes
Two-post fixed ROPS.

Capacity
Fuel	12.7 gal 48.1 L
Hydraulic system	7.7 gal 29.1 L

Hydraulics
Type	open center
Capacity	7.7 gal 29.1 L
Pressure	2275 psi 156.9 bar
Valves	0 to 2
Pump flow	8.2 gpm 31.0 lpm

Tractor hitch
Rear Type	I
Control	draft, position, and response control
Rear lift (at ends)	3086 lbs 1399 kg
Rear lift (at 24"/610mm)	2600 lbs 1179 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	74.8 inches 189 cm
Weight	3848 lbs 1745 kg
Front tire	9.5x16
Rear tire	13.6x28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
Battery CCA	662
Battery volts	12

References

MF 1100 Series published in 1995, by Massey Ferguson
1160 published in 1991, by Massey Ferguson

Engine

Engine Detail — 136.5 ci / 2.2 L Diesel

Manufacturer	Isuzu 4JC1
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	136.5 ci 2.2 L
Bore/Stroke	3.465x3.622 inches 88 x 92 mm
Power	41 hp 30.6 kW
Fuel system	direct injection
Air cleaner	dual dry element
Pre-heating	glow plugs
Rated RPM	2500
Torque	183 lb-ft 248.1 Nm
Torque RPM	1600
Starter volts	12
Coolant capacity	9.6 qts 9.1 L

Transmission

Transmission — 16 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	16 forward and reverse
Clutch	260mm disc

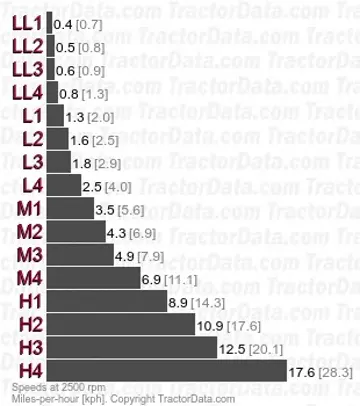

Four gears (1-4) in four ranges (LL, L, M, and H) with shuttle. Gears 3 and 4 are synchronized.
With 13.6x28 rear tires. Reverse speeds are 9% slower than forward.

Dimensions

Massey Ferguson 1160 Tires
Ag front	9.5x16
Ag rear	13.6x28
Lawn/turf front	212/80D-15
Lawn/turf rear	475/65D-20

Dimensions
Wheelbase	74.8 inches 189 cm
Length	130 inches 330 cm
Width	58.7 inches 149 cm
Height (ROPS)	89 inches 226 cm
Shipping weight	3848 lbs 1745 kg
Ground clearance	12 inches 30 cm
Front tread	50.3 inches 127 cm
Rear tread	45.6 to 57.9 inches 115 to 147 cm

Photos

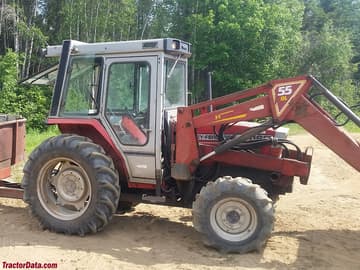

Massey Ferguson 1160

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 1160 based on its 41 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 1160.

Estimated Continuous Field Runtime: 6 hrs

Approximately 6 hours of continuous field operation at ~75% rated power on a full tank (12.7 gal / 48.1 L).

Estimated 75% Load Fuel Burn~2.1 gal/hr (8.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
