Bobcat CT450

The Bobcat CT450 is a tractor produced by Bobcat. It is equipped with a 148.6 ci 2.4 L engine. The rated power output is 49 hp 36.5 kW. Transmission: 12 forward and reverse. Operating weight: 1,118 lbs 507 kg.

Overview

	2008 - 2013 Compact Utility tractorDaedong built
2008 - 2013
Compact Utility tractor
Daedong built

2008 - 2013
Compact Utility tractor
Daedong built

Production
Distributor	Bobcat
Manufacturer	Daedong
Compact Utility tractor
Built in Daegu, South Korea

Variants
CT450SST	shuttle shift

Bobcat CT450 Engine
Daedong 2.4L 4-cyl diesel
Fuel tank	11.9 gal 45.0 L
Engine details ...

Bobcat CT450 Power
Engine	49 hp 36.5 kW
PTO (claimed)	38 hp (hydro) 28.3 kW
	41 hp (shuttle) 30.6 kW
PTO (tested)	38.48 hp 28.7 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Differential wet disc brakes
ROPS. Cab optional with heat and air-conditioning.

Hydraulics
Valves	1 or 2
Pump flow	9.5 gpm 36.0 lpm
Total flow	16.1 gpm 60.9 lpm
Steering flow	6.6 gpm 25.0 lpm

Tractor hitch
Rear Type	I
Rear lift (at 24"/610mm)	1,870 lbs 848 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
Mid PTO	optional
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	73.8 inches 187 cm
Weight	3935 to 4314 pounds
Front tire	8x16
Rear tire	13.6x24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Compact Tractors published in 2010, by Bobcat

Engine

	2008 - 2013 Compact Utility tractorDaedong built
2008 - 2013
Compact Utility tractor
Daedong built

2008 - 2013
Compact Utility tractor
Daedong built

Engine Detail — 148.6 ci / 2.4 L Diesel

Manufacturer	Daedong
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	148.6 ci 2.4 L
Bore/Stroke	3.425x4.031 inches 87 x 102 mm
Power	49 hp 36.5 kW
Air cleaner	dry
Compression	22:1
Rated RPM	2600
Starter volts	12

Transmission

	2008 - 2013 Compact Utility tractorDaedong built
2008 - 2013
Compact Utility tractor
Daedong built

2008 - 2013
Compact Utility tractor
Daedong built

Transmission options
hydrostatic
12-speed shuttle

Transmission — infinite forward and infinite reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and infinite reverse (3-range)

Transmission — 12 forward and reverse shuttle

Type	shuttle
Gears	12 forward and reverse
The shuttle shift option was added in 2010 with the CT450SST.

Dimensions

	2008 - 2013 Compact Utility tractorDaedong built
2008 - 2013
Compact Utility tractor
Daedong built

2008 - 2013
Compact Utility tractor
Daedong built

Bobcat CT450 Tires
Ag front	8x16
Ag rear	13.6x24
Lawn/turf front	29x12.5-15
Lawn/turf rear	21.5L16.1
Industrial front	10x16.5
Industrial rear	14.9x24

Dimensions
Wheelbase	73.8 inches 187 cm
Length	134.3 inches 341 cm
Width	69 inches 175 cm
Height (ROPS)	95.5 inches 242 cm
Height (cab)	94.7 inches 240 cm
Weight	3,935 lbs (ROPS) 1784 kg
	4,314 lbs (cab) 1956 kg
Ground clearance	14 inches 35 cm

Tests

	2008 - 2013 Compact Utility tractorDaedong built
2008 - 2013
Compact Utility tractor
Daedong built

2008 - 2013
Compact Utility tractor
Daedong built

Nebraska Tractor Test 1983
Diesel hydrostatic 4WD March 23 - 25, 2011 Link: Nebraska Tractor Test 1983 file
PTO performance
Power at rated engine speed	38.48 hp 28.7 kW
Fuel use	2.9 gal/hour 11.0 l/hour
Power at rated PTO speed	38.89 hp 29.0 kW
Fuel use	2.9 gal/hour 11.0 l/hour

Attachments

	2008 - 2013 Compact Utility tractorDaedong built
2008 - 2013
Compact Utility tractor
Daedong built

2008 - 2013
Compact Utility tractor
Daedong built

Attachment overview
Front-end loader
Backhoe

Bobcat 7TB Backhoe
Backhoe type	Bobcat 7TB Backhoe
Weight	1,047 lbs 474 kg
Digging depth	90 inches 228 cm
Reach from pivot	117.6 inches 298 cm
Bucket force	2,827 lbs 1282 kg
Dipperstick force	2,022 lbs 917 kg

Bobcat 8TB Backhoe
Backhoe type	Bobcat 8TB Backhoe
Weight	1,118 lbs 507 kg
Digging depth	102 inches 259 cm
Reach from pivot	135.13 inches 343 cm
Bucket force	4,156 lbs 1885 kg
Dipperstick force	2,183 lbs 990 kg

Photos

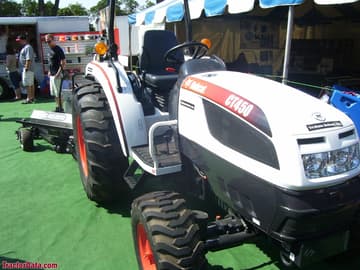

Bobcat CT450

Bobcat CT450 operator station and controls.
