Bolens G154

The Bolens G154 is a tractor produced by Bolens. It is equipped with a 40.8 ci 0.7 L engine. The rated power output is 15 hp 11.2 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1124 lbs 509 kg.

Overview

	1978 - 1991 Model year 1978-19811981-1991 Sub-Compact Utility tractorIseki built
1978 - 1991
Model year 1978-19811981-1991
Sub-Compact Utility tractor
Iseki built

1978 - 1991
Model year 1978-19811981-1991
Sub-Compact Utility tractor
Iseki built

Production
Distributor	Bolens
Manufacturer	Iseki
Sub-Compact Utility tractor

Variants
G152	2WD
G154	4WD
TX1300	similar Iseki model

Bolens G154 Engine
Mitsubishi 0.7L 2-cyl diesel
Fuel tank	3.2 gal 12.1 L
Engine details ...

Bolens G154 Transmission
6-speed unsynchronized gear
Transmission details ...

Bolens G154 Power
Engine	15 hp 11.2 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Manual steering
Mechanical internal expanding brakes
Open operator station.

Power Take-off (PTO)
Rear PTO	transmission
Rear PTO Type	472/752/1177
Engine RPM	472@2700
	752@2700
	1177@2700

Dimensions & Tires
Wheelbase	50.4 inches 128 cm
Weight	1124 lbs 509 kg
Front tire	5.00-12
Rear tire	8-16
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	45

References
Diesel Tractors published in 1978, by Bolens
Diesel Tractors published in 1979, by Bolens
Diesel Tractors - The Work Machines published in 1980, by Bolens
Operating Instructions G152 - G154 - G172 - G174 (553214-1) published in 1978

Engine

	1978 - 1991 Model year 1978-19811981-1991 Sub-Compact Utility tractorIseki built
1978 - 1991
Model year 1978-19811981-1991
Sub-Compact Utility tractor
Iseki built

1978 - 1991
Model year 1978-19811981-1991
Sub-Compact Utility tractor
Iseki built

Engine Detail — 40.8 ci / 0.7 L Diesel

Manufacturer	Mitsubishi KE 70
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled
Displacement	40.8 ci 0.7 L
Bore/Stroke	2.87x3.15 inches 73 x 80 mm
Power	15 hp 11.2 kW
Air cleaner	dry element
Pre-heating	glow plugs
Starter	electric
Starter volts	12
Coolant capacity	4.4 qts 4.2 L
Oil capacity	2.7 qts 2.6 L
Oil change	100 h

Transmission

	1978 - 1991 Model year 1978-19811981-1991 Sub-Compact Utility tractorIseki built
1978 - 1991
Model year 1978-19811981-1991
Sub-Compact Utility tractor
Iseki built

1978 - 1991
Model year 1978-19811981-1991
Sub-Compact Utility tractor
Iseki built

Transmission — 6 forward and 2 reverse unsynchronized gear

Type	unsynchronized gear
Gears	6 forward and 2 reverse
Clutch	dry disc
Oil capacity	13 qts 12.3 L
Three gears (1-3) plus reverse (R) with additional high-low range shift. Tractor must be stopped, and clutch used, to shift gears and range.

Dimensions

	1978 - 1991 Model year 1978-19811981-1991 Sub-Compact Utility tractorIseki built
1978 - 1991
Model year 1978-19811981-1991
Sub-Compact Utility tractor
Iseki built

1978 - 1991
Model year 1978-19811981-1991
Sub-Compact Utility tractor
Iseki built

Bolens G154 Tires
Standard tires (ag)	Front: 5.00-12. Rear: 8-16

Dimensions
Wheelbase	50.4 inches 128 cm
Length	77.2 inches 196 cm
Width	37.8 inches 96 cm
Height	46.9 inches 119 cm
Weight	1124 lbs 509 kg
Ground clearance	10 inches 25 cm
Front tread	31.1/37.4 inches 78/94 cm
Rear tread	29.1/33/37 inches 73/83/93 cm

Attachments

	1978 - 1991 Model year 1978-19811981-1991 Sub-Compact Utility tractorIseki built
1978 - 1991
Model year 1978-19811981-1991
Sub-Compact Utility tractor
Iseki built

1978 - 1991
Model year 1978-19811981-1991
Sub-Compact Utility tractor
Iseki built

Attachment overview
42" mid-mount mower deck
Snowblower
Blade

42" Mower deck
Type	mid-mount Bolens
Cutting width	42 inches 106 cm

Photos

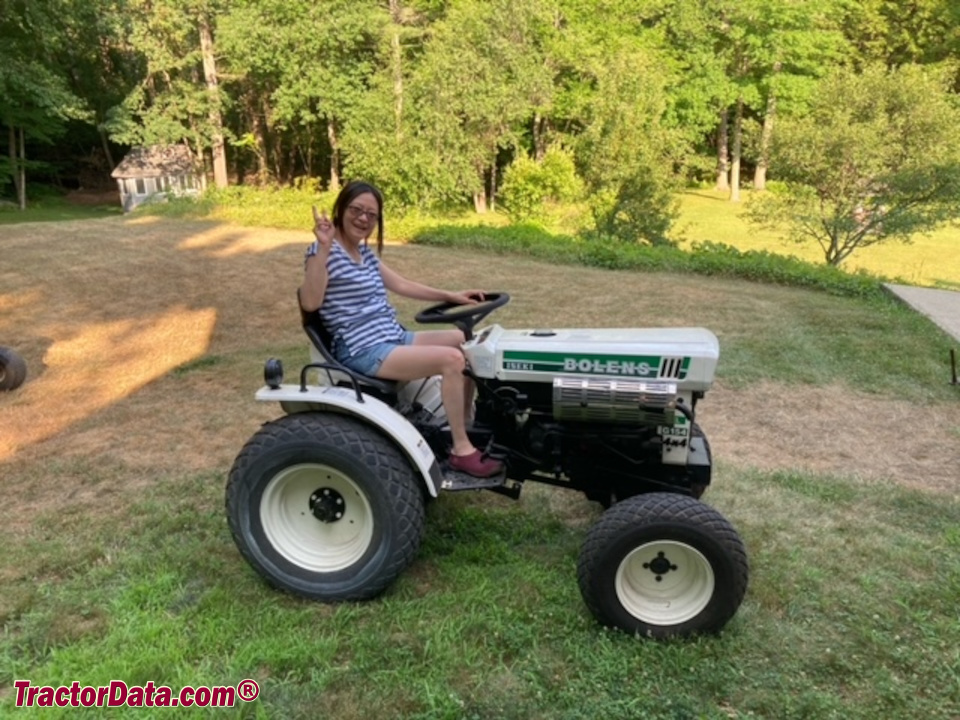

Bolens G154 compact utility tractor.
