Bolens 1400G 1463
The Bolens 1400G 1463 is a tractor produced by Bolens Lawn Tractors. It is equipped with a 388 cc 23.7 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Peerless. Operating weight: 703 lbs 318 kg.
Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
1.6 gal
6.1 L
Transmission
Peerless
Operating Weight
703 lbs
318 kg
Overview
 | 1983 - 1985
Medium Frame SeriesGarden tractor
Medium Frame Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Bolens |
Garden tractor | |
Bolens 1400G Engine | |
|---|---|
14HP Tecumseh 388cc 1-cyl gasoline | |
Fuel tank | 1.6 gal
6.1 L |
Engine details ...  | |
Bolens 1400G Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Steering | manual |
Disc brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Type | sleeve hitch (optional) |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49 inches
124 cm |
Weight | 703 lbs
318 kg |
Front tire | 16/6.50-8 |
Rear tire | 23/8.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 388 cc / 23.7 ci Gasoline
Manufacturer | Tecumseh OH140 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 388 cc
23.7 ci |
Bore/Stroke | 3.3125x2.75 inches
84 x 70 mm |
Power (gross) | 14 hp
10.4 kW |
Air cleaner | dry |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.5 qts
1.4 L |
Sparkplug | Champion RL85 |
Sparkplug gap | 0.030 inches
0.762 mm |
Transmission
Transmission — Peerless
Transmission | Peerless |
Type | gear |
Gears | 4 forward and 1 reverse |
Oil capacity | 1.5 qts
1.4 L |
Oil type | EP 90 Gear Lube |
Dimensions
Bolens 1400G Tires | |
|---|---|
Lawn/turf front | 16/6.50-8 |
Lawn/turf rear | 23/8.50-12 |
Dimensions | |
|---|---|
Wheelbase | 49 inches
124 cm |
Length | 70.75 inches
179 cm |
Width | 36.25 inches
92 cm |
Height | 44 inches
111 cm |
Weight | 703 lbs
318 kg |
Ground clearance | 7 inches
17 cm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

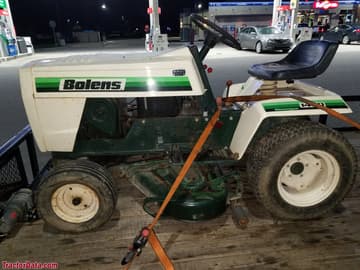

Bolens 1400G 1463
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens Lawn Tractors Bolens 1400G 1463.
Estimated Continuous Field Runtime: 2.2 hrs
Approximately 2.2 hours of continuous field operation at ~75% rated power on a full tank (1.6 gal / 6.1 L).
Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bolens Lawn Tractors Bolens 1400G 1463 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bolens Lawn Tractors Bolens 1400G 1463.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
