Bolens 1225

The Bolens 1225 is a tractor produced by Bolens Lawn Tractors. It is equipped with a 453 cc 27.66 ci engine. The listed engine power is Gasoline (listed): 12 hp / 8.9 kW. Transmission: Eaton 10. Operating weight: 675 lbs 306 kg.

Overview

	1969 Tube Frame SeriesGarden tractor Tube Frame Series Garden tractor

Production
Manufacturer	Bolens
Garden tractor

Bolens 1225 Engine
12HP Wisconsin 453cc 1-cyl gasoline
Engine details ...

Bolens 1225 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station

Dimensions & Tires
Wheelbase	40.5 inches 102 cm
Weight	675 lbs 306 kg
Front tire	16x6.50-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Husky Tractors published in 1969, by Bolens

Engine

Engine Detail — 453 cc / 27.66 ci Gasoline

Manufacturer	Wisconsin TRA12D
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	453 cc 27.66 ci
Bore/Stroke	3.50x2.875 inches 89 x 73 mm
Power	12 hp 8.9 kW
Rated RPM	3600
Starter	electric
Starter volts	12

Transmission

Transmission — Eaton 10

Transmission	Eaton 10
Type	hydrostatic
Gears	infinite forward and reverse
Clutch	Fwd:Rev
	:8:4

Dimensions

Bolens 1225 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	40.5 inches 102 cm
Length	62.5 inches 158 cm
Width	34 inches 86 cm
Height	40 inches 101 cm
Shipping weight	675 lbs 306 kg

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

42" Mower deck
Type	mid-mount Bolens
	3-blade
Cutting width	42 inches 106 cm

Photos

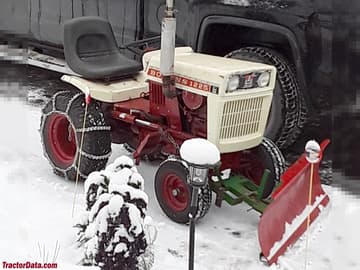

Bolens 1225
