Bolens 1402G 1467

The Bolens 1402G 1467 is a tractor produced by Bolens Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Peerless. Operating weight: 703 lbs 318 kg.

Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
3.5 gal 13.2 L
Transmission
Peerless
Operating Weight
703 lbs 318 kg

Overview

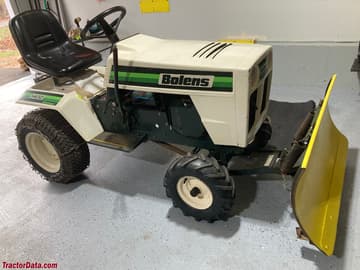

Bolens 1402G 1467 tractor photo
1986 - 1993 Medium Frame SeriesGarden tractor Medium Frame Series Garden tractor
Production
Manufacturer
Bolens
Garden tractor
Bolens 1402G Engine
14HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank
3.5 gal 13.2 L
Engine details ...
Bolens 1402G Transmission
4-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Tractor hitch
Type
sleeve hitch OptOptional
Power Take-off (PTO)
Front PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
49 inches 124 cm
Weight
703 lbs 318 kg
Front tire
16/6.50-8
Rear tire
23/8.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
16
Battery volts
12
References
1402G 1467 references literature
High Performance published in 1987, by Bolens
Lawn & Garden published in 1988, by Bolens*
Lawn and Garden Power Products published in 1989, by Bolens
*Publication contains known errors.

Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer
Briggs & Stratton 400437
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled horizontal-shaft opposed-twin
Displacement
655 cc 40 ci
Bore/Stroke
3.437x2.156 inches 87 x 55 mm
Power (gross)
14 hp 10.4 kW
Air cleaner
dry with foam precleaner
Rated RPM
3600
Starter
electric
Starter volts
12
Oil capacity
1.75 qts 1.7 L
Sparkplug
Champion J-8
Sparkplug gap
0.030 inches 0.762 mm

Transmission

Transmission — Peerless

Transmission
Peerless
Type
gear
Gears
4 forward and 1 reverse
Oil capacity
1.5 qts 1.4 L
Oil type
EP 90 Gear Lube

Dimensions

Bolens 1402G Tires
Lawn/turf front
16/6.50-8
Lawn/turf rear
23/8.50-12
Dimensions
Wheelbase
49 inches 124 cm
Length
70.75 inches 179 cm
Width
36.25 inches 92 cm
Height
44 inches 111 cm
Weight
703 lbs 318 kg
Ground clearance
7 inches 17 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Bolens 1402G 1467

Bolens 1402G 1467

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens Lawn Tractors Bolens 1402G 1467.

Estimated Continuous Field Runtime: 4.8 hrs

Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (3.5 gal / 13.2 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Bolens Lawn Tractors Bolens 1402G 1467 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Bolens Lawn Tractors Bolens 1402G 1467.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
