bolens lawn tractors 1468
 | 1990 - 1993
Medium Frame SeriesGarden tractor | 1990 - 1993 | Medium Frame Series | Garden tractor |
|---|---|---|---|---|
1990 - 1993 | ||||
Medium Frame Series | ||||
Garden tractor | ||||
1990 - 1993 | |
|---|---|
Medium Frame Series | |
Garden tractor |
Engine Detail | |
|---|---|
Vanguard 290447 | |
gasoline | |
2-cylinder | |
air-cooled horizontal-shaft V-Twin | |
Displacement | 480 cc
29.3 ci |
Bore/Stroke | 2.68x2.60 inches
68 x 66 mm |
Power (gross) | 14 hp
10.4 kW |
Air cleaner | dry with foam precleaner |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.75 qts
1.7 L |
Sparkplug | Champion J-8 |
Sparkplug gap | 0.030 inches
0.762 mm |

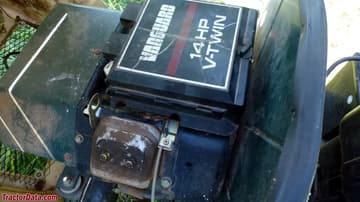

Bolens 1468 Engine | |
|---|---|
 | |
Image courtesy of Mike |
