Bolens 1476
The Bolens 1476 is a tractor produced by Bolens Lawn Tractors. It is equipped with a 542 cc 33.1 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Eaton 12. Operating weight: 860 lbs 390 kg.
Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
Gasoline
Transmission
Eaton 12
Operating Weight
860 lbs
390 kg
Overview
 | 1970 - 1971
Large Frame SeriesGarden tractor
Large Frame Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Bolens |
Garden tractor | |
Bolens 1476 Engine | |
|---|---|
14HP Wisconsin 542cc 1-cyl gasoline | |
Engine details ...  |
Bolens 1476 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 49 inches
124 cm |
Weight | 860 lbs
390 kg |
Front tire | 5.70/5.00x8 |
Rear tire | 27x8.50-15 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Husky 1476 published in 1970, by Bolens | |
Bolens Husky published in 1970 | |
Big tractor published in 1971, by Bolens |
Engine
Engine Detail — 542 cc / 33.1 ci Gasoline
Manufacturer | Wisconsin S14D |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft horizontally-opposed |
Displacement | 542 cc
33.1 ci |
Bore/Stroke | 3.75x3.00 inches
95 x 76 mm |
Power (gross) | 14 hp
10.4 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion D-16J |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — Eaton 12
Transmission | Eaton 12 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil type | Type A Trans Fluid |
 | |
Type A Trans Fluid |
|---|
Dimensions
Bolens 1476 Tires | |
|---|---|
Lawn/turf front | 5.70/5.00x8 |
Lawn/turf rear | 27x8.50-15 |
Dimensions | |
|---|---|
Wheelbase | 49 inches
124 cm |
Length | 72 inches
182 cm |
Width | 38 inches
96 cm |
Height (steering wheel) | 45 inches
114 cm |
Shipping weight | 860 lbs
390 kg |
Ground clearance | 8.5 inches
21 cm |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
48" Mower deck | |
|---|---|
Type | mid-mount Bolens |
3-blade | |
Cutting width | 48 inches
121 cm |
Photos

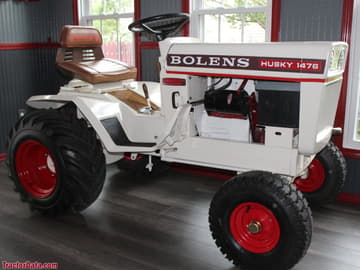

Bolens 1476
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens Lawn Tractors Bolens 1476.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bolens Lawn Tractors Bolens 1476 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bolens Lawn Tractors Bolens 1476.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
