Bolens 510
The Bolens 510 is a tractor produced by Bolens Lawn Tractors. It is equipped with a 206 cc 12.57 ci engine. The listed engine power is Gasoline (listed): 5 hp / 3.7 kW. Transmission: Peerless. Operating weight: 345 lbs 156 kg.
Engine Power
Gasoline (listed): 5 hp / 3.7 kW
Fuel & Capacities
0.5 gal
1.9 L
Transmission
Peerless
Operating Weight
345 lbs
156 kg
Overview
 | 1971 - 1972
Husky Pup SeriesLawn tractor
Husky Pup Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Bolens |
Lawn tractor | |
Bolens 510 Engine | |
|---|---|
5HP Briggs & Stratton 206cc 1-cyl gasoline | |
Fuel tank | 0.5 gal
1.9 L |
Engine details ...  | |
Bolens 510 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Disc brakes | |
Open operator station | |
Dimensions & Tires | |
|---|---|
Wheelbase | 40 inches
101 cm |
Weight | 345 lbs
156 kg |
Front tire | 3.50x4.10x6 |
Rear tire | 4x4.80x8 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Husky Pups published in 1971, by Bolens | |
Lawn & Garden published in 1971, by Bolens |
Engine
Engine Detail — 206 cc / 12.57 ci Gasoline
Manufacturer | Briggs & Stratton 130902 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 206 cc
12.57 ci |
Bore/Stroke | 2.5625x2.4375 inches
65 x 62 mm |
Power | 5 hp
3.7 kW |
Rated RPM | 3600 |
Starter type | manual recoil |
Oil capacity | 0.875 qts
0.8 L |
Transmission
Transmission — Peerless
Transmission | Peerless |
Type | gear |
Gears | 3 forward and 1 reverse |
Clutch | mechanical belt |
 | |
Dimensions
Bolens 510 Tires | |
|---|---|
Lawn/turf front | 3.50x4.10x6 |
Lawn/turf rear | 4x4.80x8 |
Dimensions | |
|---|---|
Wheelbase | 40 inches
101 cm |
Length | 56 inches
142 cm |
Width | 30 inches
76 cm |
Height | 36 inches
91 cm |
Shipping weight | 345 lbs
156 kg |
Ground clearance | 5 inches
12 cm |
Attachments
Attachment overview | |
|---|---|
28" mid-mount mower deck | |
Blade |
28" Mower deck | |
|---|---|
Type | mid-mount Bolens |
Cutting width | 28 inches
71 cm |
Photos

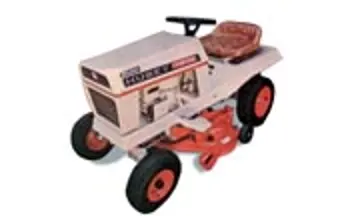

Bolens 510 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens Lawn Tractors Bolens 510.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bolens Lawn Tractors Bolens 510 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bolens Lawn Tractors Bolens 510.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
