Bolens 528
The Bolens 528 is a tractor produced by Bolens Lawn Tractors. It is equipped with a 206 cc 12.57 ci engine. The listed engine power is Gasoline (gross): 5 hp / 3.7 kW. Transmission: Peerless 730. Operating weight: 365 lbs 165 kg.
Engine Power
Gasoline (gross): 5 hp / 3.7 kW
Fuel & Capacities
0.5 gal
1.9 L
Transmission
Peerless 730
Operating Weight
365 lbs
165 kg
Overview
 | 1979
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Bolens |
Riding lawn mower | |
Bolens 528 Engine | |
|---|---|
5HP Briggs & Stratton 206cc 1-cyl gasoline | |
Fuel tank | 0.5 gal
1.9 L |
Engine details ...  | |
Bolens 528 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical idler pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 43 inches
109 cm |
Weight | 365 lbs
165 kg |
Front tire | 3.5x10 |
Rear tire | 4.8x16.8 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Rear Engine Riders - Lawn Tractors published in 1979, by Bolens | |
Riding Mower Service Manual (552568-3) published in 1980 |
Engine
Engine Detail — 206 cc / 12.57 ci Gasoline
Manufacturer | Briggs & Stratton 130902 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 206 cc
12.57 ci |
Bore/Stroke | 2.56x2.44 inches
65 x 62 mm |
Power (gross) | 5 hp
3.7 kW |
Rated RPM | 3600 |
Starter type | manual recoil |
Sparkplug | Champion J-8 |
Sparkplug gap | 0.030 inches
0.762 mm |
Point gap | 0.020 inches
0.508 mm |
Oil capacity | 0.9 qts
0.9 L |
Oil change | 25 h |
Transmission
Transmission — Peerless 730
Transmission | Peerless 730 |
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Clutch | idler pulley |
 | |
Dimensions
Bolens 528 Tires | |
|---|---|
Lawn/turf front | 3.5x10 |
Lawn/turf rear | 4.8x16.8 |
Dimensions | |
|---|---|
Wheelbase | 43 inches
109 cm |
Length | 60 inches
152 cm |
Height (steering wheel) | 38.4 inches
97 cm |
Weight | 365 lbs
165 kg |
Attachments
28" Mower deck | |
|---|---|
Type | mid-mount Bolens |
1-blade with manual lift | |
Cutting width | 28 inches
71 cm |
Overall width | 31 inches
78 cm |
Cut height | 1.25 to 3.25 inch
3 to 8 cm |
Cut positions | 7 |
Photos

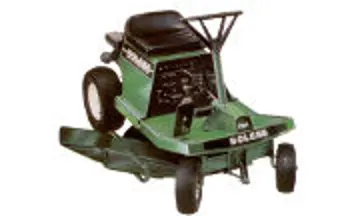

Bolens 528 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens Lawn Tractors Bolens 528.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bolens Lawn Tractors Bolens 528 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bolens Lawn Tractors Bolens 528.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
