Bolens 8726 Suburban
The Bolens 8726 Suburban is a tractor produced by Bolens Lawn Tractors. It is equipped with a 231 cc 14.1 ci engine. The listed engine power is Gasoline (listed): 5 hp / 3.7 kW. Transmission: 1 forward and reverse.
Engine Power
Gasoline (listed): 5 hp / 3.7 kW
Fuel & Capacities
Gasoline
Transmission
1 forward and reverse
Overview
 | 1963 - 1965
Model year 19631964-1965
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Bolens |
Riding lawn mower | |
Bolens 8726 Engine | |
|---|---|
5HP Briggs & Stratton 231cc 1-cyl gasoline | |
Engine details ...  |
Bolens 8726 Transmission | |
|---|---|
1-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
References | |
|---|---|
 | |
Outdoor Power Equipment published in 1963, by Bolens | |
Outdoor Power Equipment published in 1964, by Bolens |
Engine
Engine Detail — 231 cc / 14.1 ci Gasoline
Manufacturer | Briggs & Stratton 140702 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 231 cc
14.1 ci |
Bore/Stroke | 2.75x2.375 inches
70 x 60 mm |
Power | 5 hp
3.7 kW |
Starter type | manual |
Transmission
Transmission — 1 forward and reverse
Gears | 1 forward and reverse |
Dimensions
Bolens 8726 Tires |
|---|
Dimensions | |
|---|---|
Length | 45 inches
114 cm |
Width | 27 inches
68 cm |
Height | 33 inches
83 cm |
Attachments
26" Mower deck | |
|---|---|
Type | mid-mount Bolens |
1-blade | |
Cutting width | 26 inches
66 cm |
Cut height | 1.25 to 3.25 inch
3 to 8 cm |
Cut positions | 5 |
Photos

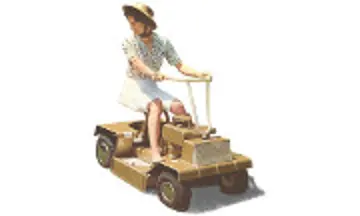

Bolens 8726 Suburban tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens Lawn Tractors Bolens 8726 Suburban.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bolens Lawn Tractors Bolens 8726 Suburban Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bolens Lawn Tractors Bolens 8726 Suburban.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
