bolens lawn tractors qt 16
 | 1973 - 1978
Q SeriesGarden tractor | 1973 - 1978 | Q Series | Garden tractor |
|---|---|---|---|---|
1973 - 1978 | ||||
Q Series | ||||
Garden tractor | ||||
1973 - 1978 | |
|---|---|
Q Series | |
Garden tractor |
Engine Detail | |
|---|---|
Onan BF-MS | |
gasoline | |
2-cylinder | |
air-cooled Horizontal-shaft opposed twin | |
Displacement | 659 cc
40.25 ci |
Bore/Stroke | 3.125x2.625 inches
79 x 67 mm |
Power (gross) | 16 hp
11.9 kW |
Air cleaner | paper element (B140-1216) |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion H8 |
Sparkplug gap | 0.025 inches
0.635 mm |
Point gap | 0.020 inches
0.508 mm |

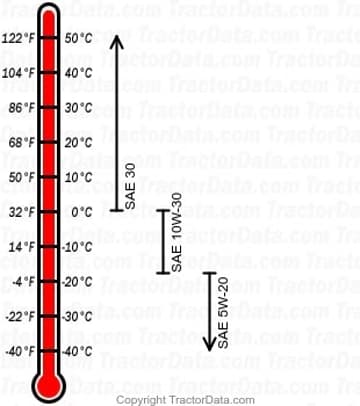

Engine Oil | |
|---|---|
 | |
Oil capacity | 2 qts
1.9 L |
Oil change | 50 h |
