Bolinder-Munktell 36

The Bolinder-Munktell 36 is a tractor produced by Bolinder Munktell. It is equipped with a 205 ci 3.4 L engine. The listed engine power is Diesel (listed): 41.9 hp / 31.2 kW. Transmission: 5 forward and 1 reverse. Operating weight: 5424 lbs 2460 kg.

Engine Power

Diesel (listed): 41.9 hp / 31.2 kW

Fuel & Capacities

17.2 gal 65.1 L

Transmission

5 forward and 1 reverse

Operating Weight

5424 lbs 2460 kg

Overview

	1953 - 1954 Row-Crop tractor

Note: the Bolinder-Munktell model 36 is the same as the Volvo T36. The following data is from the T36 listing.

Production
Manufacturer	Bolinder-Munktell (a part of Volvo)
Row-Crop tractor
Total built	1632

Bolinder-Munktell 36 Engine
Bolinder 3.4L 3-cyl diesel
Fuel tank	17.2 gal 65.1 L
Engine details ...

Bolinder-Munktell 36 Transmission
5-speed gear
Transmission details ...

Bolinder-Munktell 36 Power
Engine	41.9 hp 31.2 kW
PTO (claimed)	37.5 hp 28.0 kW

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	540@1500

Dimensions & Tires
Wheelbase	79.1 inches 200 cm
Weight	5424 lbs 2460 kg
Front tire	6.00x19
Rear tire	11x38
Full dimensions and tires ...

Electrical
Charging system	generator
Battery volts	12

Engine

Note: the Bolinder-Munktell model 36 is the same as the Volvo T36. The following data is from the T36 listing.

Engine Detail — 205 ci / 3.4 L Diesel

Manufacturer	Bolinder 1053
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	205 ci 3.4 L
Bore/Stroke	4.13x5.12 inches 105 x 130 mm
Power	41.9 hp 31.2 kW
Rated RPM	1800
Starter volts	12

Transmission

Note: the Bolinder-Munktell model 36 is the same as the Volvo T36. The following data is from the T36 listing.

Transmission — 5 forward and 1 reverse gear

Type	gear
Gears	5 forward and 1 reverse

Dimensions

Note: the Bolinder-Munktell model 36 is the same as the Volvo T36. The following data is from the T36 listing.

Bolinder-Munktell 36 Tires
Ag front	6.00x19
Ag rear	11x38

Dimensions
Wheelbase	79.1 inches 200 cm
Length	124 inches 314 cm
Width	66.9 inches 169 cm
Height	85.8 inches 217 cm
Weight	5424 lbs 2460 kg
Clearance (front axle)	23 inches 58 cm
Clearance (drawbar)	20.7 inches 52 cm
Front tread	50.4 to 67.3 inches 128 to 170 cm
Rear tread	52.8 to 76.4 inches 134 to 194 cm

Photos

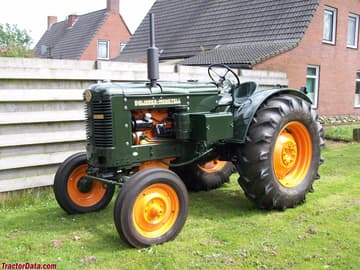

Bolinder-Munktell 36

Recommended Implements & Sizing Guide

Engineering recommendations for Bolinder Munktell Bolinder-Munktell 36 based on its 41.9 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Bolinder Munktell Bolinder-Munktell 36.

Estimated Continuous Field Runtime: 7.9 hrs

Approximately 7.9 hours of continuous field operation at ~75% rated power on a full tank (17.2 gal / 65.1 L).

Estimated 75% Load Fuel Burn~2.2 gal/hr (8.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Bolinder Munktell Bolinder-Munktell 36 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Bolinder Munktell Bolinder-Munktell 36.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)41.9 hp

Kilowatts (kW)31.2 kW

Metric Horsepower (PS / CV)42.5 PS

Direct Competitor Comparison

Compare Bolinder-Munktell 36 against same-era industry alternatives in the same horsepower class.
