bolinder munktell bm 20
 | 1944 - 1950
Standard-tread tractor | 1944 - 1950 | Standard-tread tractor |
|---|---|---|---|
1944 - 1950 | |||
Standard-tread tractor | |||
1944 - 1950 | |
|---|---|
Standard-tread tractor |
Engine Detail | |
|---|---|
Bolinder W5 | |
diesel | |
2-cylinder | |
liquid-cooled | |
Displacement | 323.4 ci
5.3 L |
Bore/Stroke | 5.91x5.91 inches
150 x 150 mm |
Power | 41 hp
30.6 kW |
Rated RPM | 1050 |
Starter | electric |
Starter volts | 24 |
Oil capacity | 11.1 qts
10.5 L |
Coolant capacity | 23.3 qts
22.1 L |

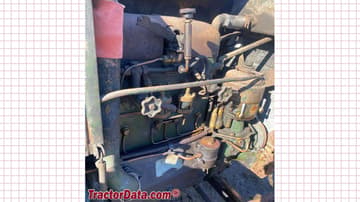

Bolinder-Munktell BM-20 Engine | |
|---|---|
 | |
Image courtesy of Kamil Szturc |
