Bush Hog D4-7
The Bush Hog D4-7 is a tractor produced by Bush Hog Lawn Tractors. It is equipped with a 304 cc 18.6 ci engine. The listed engine power is Gasoline (listed): 7.25 hp / 5.4 kW. Transmission: 4 forward and 2 reverse. Operating weight: 640 lbs 290 kg.
Engine Power
Gasoline (listed): 7.25 hp / 5.4 kW
Fuel & Capacities
1 gal
3.8 L
Transmission
4 forward and 2 reverse
Operating Weight
640 lbs
290 kg
Overview
 | 1966 - 1968
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Bush Hog |
Garden tractor | |
Built in Galesburg, Kansas, USA | |
Bush Hog D4-7 Engine | |
|---|---|
7.25HP Wisconsin 304cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Bush Hog D4-7 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 49 inches
124 cm |
Weight | 640 lbs
290 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x8.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Little Giants published in 1966, by Bush Hog | |
The garden tractor that's all muscle published in 1966, by Bush Hog |
Engine
Engine Detail — 304 cc / 18.6 ci Gasoline
Manufacturer | Wisconsin S7D |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 304 cc
18.6 ci |
Bore/Stroke | 3.00x2.625 inches
76 x 67 mm |
Power | 7.25 hp
5.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 4 forward and 2 reverse shaft-driven gear
Type | shaft-driven gear |
Gears | 4 forward and 2 reverse |
 | |
Dimensions
Bush Hog D4-7 Tires | |
|---|---|
Ag front | 4.80/4.00-8 |
Ag rear | 6.00-12 |
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x8.50-12 |
Dimensions | |
|---|---|
Wheelbase | 49 inches
124 cm |
Length | 68 inches
172 cm |
Width | 33 inches
83 cm |
Height | 38.75 inches
98 cm |
Weight | 640 lbs
290 kg |
Ground clearance | 7 inches
17 cm |
Attachments
Attachment overview | |
|---|---|
32" mid-mount mower deck | |
42" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

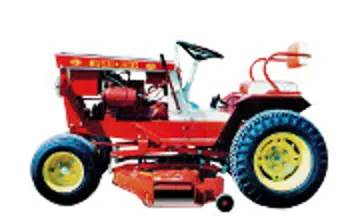

Bush Hog D4-7 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bush Hog Lawn Tractors Bush Hog D4-7.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bush Hog Lawn Tractors Bush Hog D4-7 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bush Hog Lawn Tractors Bush Hog D4-7.
Converted Equivalents:
Horsepower (HP)7.3 hp
Kilowatts (kW)5.4 kW
Metric Horsepower (PS / CV)7.4 PS
