Bush Hog T-63

The Bush Hog T-63 is a tractor produced by Bush Hog Lawn Tractors. It is equipped with a 304 cc 18.6 ci engine. The listed engine power is Gasoline (listed): 7.25 hp / 5.4 kW. Transmission: 4 forward and 2 reverse. Operating weight: 80 lbs 36 kg.

Engine Power
Gasoline (listed): 7.25 hp / 5.4 kW
Fuel & Capacities
Gasoline
Transmission
4 forward and 2 reverse
Operating Weight
80 lbs 36 kg

Overview

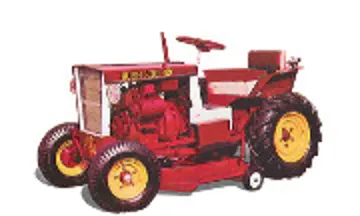

Bush Hog T-63 tractor photo
1962 - 1965 Garden tractor
Production
Manufacturer
Bush Hog
Garden tractor
Built in Galesburg, Kansas, USA
Variants
TR-63
manual start
TE-63
electric start
Bush Hog T-63 Engine
7.25HP Wisconsin 304cc 1-cyl gasoline
Engine details ...
Bush Hog T-63 Transmission
4-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Dimensions & Tires
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
T-63 references literature
Operator's Manual T-63 published in 1962

Engine

Engine Detail — 304 cc / 18.6 ci Gasoline

Manufacturer
Wisconsin S7D
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
304 cc 18.6 ci
Bore/Stroke
3.00x2.625 inches 76 x 67 mm
Power
7.25 hp 5.4 kW
Starter
manual recoil
electric OptOptional
Starter volts
12

Transmission

Transmission — 4 forward and 2 reverse shaft-driven gear

Type
shaft-driven gear
Gears
4 forward and 2 reverse
T-63 shaft-driven gear speeds

Dimensions

Bush Hog T-63 Tires
Dimensions

Attachments

Attachment overview
32" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
32" Mower deck
Type
mid-mount Bush Hog M-32
1-blade with manual lift
Cutting width
32 inches 81 cm
Weight
80 lbs 36 kg
Cut height
1 to 4 inch 2 to 10 cm

Photos

Bush Hog T-63 tractor photo

Bush Hog T-63 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Bush Hog Lawn Tractors Bush Hog T-63.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Bush Hog Lawn Tractors Bush Hog T-63 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Bush Hog Lawn Tractors Bush Hog T-63.

Converted Equivalents:

Horsepower (HP)7.3 hp
Kilowatts (kW)5.4 kW
Metric Horsepower (PS / CV)7.4 PS
