Cabelas LM43

The Cabelas LM43 is a tractor produced by Cabelas. It is equipped with a 135.2 ci 2.2 L engine. The rated power output is 42.7 hp 31.8 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 3640 to 4120 pounds.

Overview

	2013 - 2016 LM SeriesCompact Utility tractorTYM built
2013 - 2016
LM Series
Compact Utility tractor
TYM built

2013 - 2016
LM Series
Compact Utility tractor
TYM built

Production
Distributor	Cabelas
Manufacturer	TYM
Compact Utility tractor
Built in South Korea
Original price	$27,699 (2013 shuttle ROPS )
	$29,499 (2013 hydrostatic ROPS )
	$36,499 (2013 hydrostatic cab )
	$21,699 (2014 shuttle ROPS )
	$23,199 (2014 hydrostatic ROPS )
	$26,399 (2014 hydrostatic cab )

Variants
LM43	shuttle
LM43H	hydrostatic

Cabelas LM43 Engine
Perkins 2.2L 4-cyl diesel
Engine details ...

Cabelas LM43 Power
Engine (gross)	42.7 hp 31.8 kW
PTO (claimed)	34.4 hp (gear) 25.7 kW
	31.2 hp (hydro) 23.3 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Two-post ROPS. Cab optional with air conditioning.

Capacity
Fuel	17 gal 64.3 L
Hydraulic system	9.2 gal 34.8 L
Front axle	10.5 qts 9.9 L

Hydraulics
Type	open center
Capacity	9.2 gal 34.8 L
Valves	2 to 3
Pump flow	8.8 gpm 33.3 lpm
Total flow	13.4 gpm 50.7 lpm
Steering flow	4.6 gpm 17.4 lpm

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift (at ends)	3314 lbs 1503 kg
Rear lift (at 24"/610mm)	2945 lbs 1335 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro hydraulic
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	76.2 inches 193 cm
Weight	3640 to 4120 pounds
Front tire	9.5-16
Rear tire	14.9-24
Full dimensions and tires ...

References
Spring Wildlife & Land Management Catalog published in 2014, by Cabelas
Summer Wildlife & Land Management Catalog published in 2014, by Cabelas

Engine

	2013 - 2016 LM SeriesCompact Utility tractorTYM built
2013 - 2016
LM Series
Compact Utility tractor
TYM built

2013 - 2016
LM Series
Compact Utility tractor
TYM built

Engine Detail — 135.2 ci / 2.2 L Diesel

Manufacturer	Perkins 404D-22
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled inline
Displacement	135.2 ci 2.2 L
Bore/Stroke	3.307x3.937 inches 84 x 100 mm
Power (gross)	42.7 hp 31.8 kW
Fuel system	indirect injection
Air cleaner	dual dry element
Compression	24.4:1
Rated RPM	2600
Starter	electric
Starter volts	12
Oil capacity	7.1 qts 6.7 L
Coolant capacity	9.0 qts 8.5 L

Transmission

	2013 - 2016 LM SeriesCompact Utility tractorTYM built
2013 - 2016
LM Series
Compact Utility tractor
TYM built

2013 - 2016
LM Series
Compact Utility tractor
TYM built

Transmission options
16-speed synchronized shuttle
hydrostatic

Transmission — 16 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	16 forward and reverse
Clutch	dry disc
Oil capacity	37 qts 35.0 L

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)
Oil capacity	37 qts 35.0 L

Dimensions

	2013 - 2016 LM SeriesCompact Utility tractorTYM built
2013 - 2016
LM Series
Compact Utility tractor
TYM built

2013 - 2016
LM Series
Compact Utility tractor
TYM built

Cabelas LM43 Tires
Ag front	9.5-16
Ag rear	14.9-24
Industrial front	12-16.5
Industrial rear	16.9-24

Dimensions
Wheelbase	76.2 inches 193 cm
Length	141.3 inches 358 cm
Width	71.5 inches 181 cm
Height (ROPS)	101.5 inches 257 cm
ROPS Weight	3640 lbs 1651 kg
Cab Weight	4120 lbs 1868 kg
Ground clearance	13.25 inches 33 cm

Attachments

	2013 - 2016 LM SeriesCompact Utility tractorTYM built
2013 - 2016
LM Series
Compact Utility tractor
TYM built

2013 - 2016
LM Series
Compact Utility tractor
TYM built

Photos

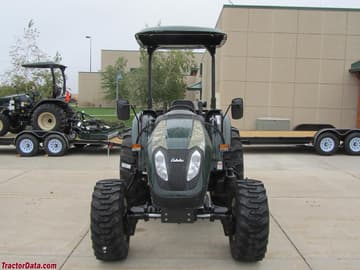

Cabela's LM43.

Cabela's LM43.

Cabela's LM43.

Cabela's LM43.

Cabela's LM43.

Cabela's LM43.

Cabela's LM43.

Cabela's LM43.

Cabela's LM43H with cab.

Cabela's LM43H with ROPS and front-end loader.

Cabela's LM43 operator station and controls.
