Cabelas LM35

The Cabelas LM35 is a tractor produced by Cabelas. It is equipped with a 107.3 ci 1.8 L engine. The rated power output is 35 hp 26.1 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 3140 lbs 1424 kg.

Overview

	2013 - 2014 LM SeriesCompact Utility tractorTYM built
2013 - 2014
LM Series
Compact Utility tractor
TYM built

2013 - 2014
LM Series
Compact Utility tractor
TYM built

Production
Distributor	Cabelas
Manufacturer	TYM
Compact Utility tractor
Built in South Korea
Original price	$21,999 (2013 shuttle )
	$23,499 (2013 hydrostatic )
	$17,999 (2014 shuttle )
	$20,099 (2014 hydrostatic )

Variants
LM35	shuttle
LM35H	hydrostatic

Cabelas LM35 Engine
Mitsubishi 1.8L 4-cyl diesel
Engine details ...

Cabelas LM35 Power
Engine (gross)	35 hp 26.1 kW
PTO (claimed)	29 hp (shuttle) 21.6 kW
	26 hp (hydro) 19.4 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Two-post foldable ROPS.

Capacity
Fuel	9 gal 34.1 L
Hydraulic system	8.5 gal (shuttle) 32.2 L
	9.2 gal (hydro) 34.8 L
Front axle	8.7 qts 8.2 L

Hydraulics
Type	open center
Capacity	8.5 gal (shuttle) 32.2 L
	9.2 gal (hydro) 34.8 L
Valves	1
Pump flow	6.3 gpm 23.8 lpm
Total flow	10.6 gpm (shuttle) 40.1 lpm
	10.9 gpm (hydro) 41.3 lpm
Steering flow	4.3 gpm (shuttle) 16.3 lpm
	4.6 gpm (hydro) 17.4 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	2646 lbs 1200 kg
Rear lift (at 24"/610mm)	1764 lbs 800 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro hydraulic
Rear PTO Type	540 (1.375)
	540/1000 (1.375)
Mid PTO	independent
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	64.5 inches 163 cm
Weight	3140 lbs 1424 kg
Front tire	7-16
Rear tire	11.2-24
Full dimensions and tires ...

References
Spring Wildlife & Land Management Catalog published in 2014, by Cabelas
Summer Wildlife & Land Management Catalog published in 2014, by Cabelas

Engine

	2013 - 2014 LM SeriesCompact Utility tractorTYM built
2013 - 2014
LM Series
Compact Utility tractor
TYM built

2013 - 2014
LM Series
Compact Utility tractor
TYM built

Engine Detail — 107.3 ci / 1.8 L Diesel

Manufacturer	Mitsubishi S4L2
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled inline
Displacement	107.3 ci 1.8 L
Bore/Stroke	3.071x3.622 inches 78 x 92 mm
Power (gross)	35 hp 26.1 kW
Fuel system	indirect injection
Air cleaner	dual dry element
Rated RPM	2700
Starter	electric
Starter volts	12
Oil capacity	6.0 qts 5.7 L
Coolant capacity	7.4 qts 7.0 L

Transmission

	2013 - 2014 LM SeriesCompact Utility tractorTYM built
2013 - 2014
LM Series
Compact Utility tractor
TYM built

2013 - 2014
LM Series
Compact Utility tractor
TYM built

Transmission options
12-speed synchronized shuttle
hydrostatic

Transmission — 12 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	12 forward and reverse
Clutch	dry disc
Oil capacity	33.8 qts 32.0 L

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)
Oil capacity	37 qts 35.0 L

Dimensions

	2013 - 2014 LM SeriesCompact Utility tractorTYM built
2013 - 2014
LM Series
Compact Utility tractor
TYM built

2013 - 2014
LM Series
Compact Utility tractor
TYM built

Cabelas LM35 Tires
Ag front	7-16
Ag rear	11.2-24
Industrial front	43x16-20
Industrial rear	10-16.5

Dimensions
Wheelbase	64.5 inches 163 cm
Length	126 inches 320 cm
Width	62.25 inches 158 cm
Height (ROPS)	95 inches 241 cm
Weight	3140 lbs 1424 kg
Ground clearance	11.5 inches 29 cm

Attachments

	2013 - 2014 LM SeriesCompact Utility tractorTYM built
2013 - 2014
LM Series
Compact Utility tractor
TYM built

2013 - 2014
LM Series
Compact Utility tractor
TYM built

Photos

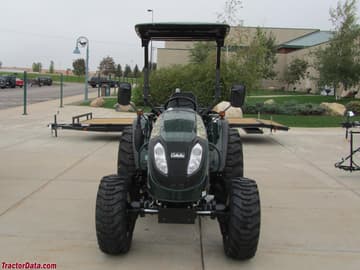

Cabela's LM35.

Cabela's LM35.

Cabela's LM35.

Cabela's LM35.

Cabela's LM35.

Cabela's LM35.

Cabela's LM35.

Cabela's LM35 with front-end loader and backhoe.

Cabela's LM35H hydrostatic operator station and controls.
