Cameco 505
The Cameco 505 is a tractor produced by Cameco. It is equipped with a 893 ci 14.6 L engine. The listed engine power is Diesel (listed): 325 hp / 242.4 kW. Transmission: Allison HT 754. Operating weight: 28050 lbs 12723 kg.
Engine Power
Diesel (listed): 325 hp / 242.4 kW
Fuel & Capacities
130 gal
492.1 L
Transmission
Allison HT 754
Operating Weight
28050 lbs
12723 kg
Overview
 | 1980 - ????
Four-wheel Drive (4WD) tractor |
|---|---|
1980 - ???? | |
Four-wheel Drive (4WD) tractor | |
1980 - ???? | |
|---|---|
Four-wheel Drive (4WD) tractor |
Production | |
|---|---|
Manufacturer | Cameco |
Four-wheel Drive (4WD) tractor | |
Built in Thibodaux, Louisiana, USA | |
Cameco 505 Engine | |
|---|---|
Caterpillar 14.6L 6-cyl diesel | |
Fuel tank | 130 gal
492.1 L |
Engine details ...  | |
Cameco 505 Transmission | |
|---|---|
10-speed power shift | |
Transmission details ...  |
Cameco 505 Power | |
|---|---|
Engine | 325 hp
242.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Cab standrd. |
Dimensions & Tires | |
|---|---|
Weight | 28050 lbs
12723 kg |
Front tire | 24.5x32 |
Rear tire | 24.5x32 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
505B published by Cameco |
Engine
| 1980 - ????
Four-wheel Drive (4WD) tractor |
|---|---|
1980 - ???? | |
Four-wheel Drive (4WD) tractor | |
1980 - ???? | |
|---|---|
Four-wheel Drive (4WD) tractor |
Engine Detail — 893 ci / 14.6 L Diesel
Manufacturer | Caterpillar 3406T |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled inline |
Displacement | 893 ci
14.6 L |
Bore/Stroke | 5.40x6.50 inches
137 x 165 mm |
Power | 325 hp
242.4 kW |
Fuel system | turbocharged |
Rated RPM | 2100 |
Idle RPM | 700-2350 |
Torque | 1015 lb-ft
1376.3 Nm |
Torque RPM | 1200 |
Firing order | 1-5-3-6-2-4 |
Starter type | electric |
Oil capacity | 39.7 qts
37.6 L |
Coolant capacity | 64.5 qts
61.0 L |
Transmission
| 1980 - ????
Four-wheel Drive (4WD) tractor |
|---|---|
1980 - ???? | |
Four-wheel Drive (4WD) tractor | |
1980 - ???? | |
|---|---|
Four-wheel Drive (4WD) tractor |

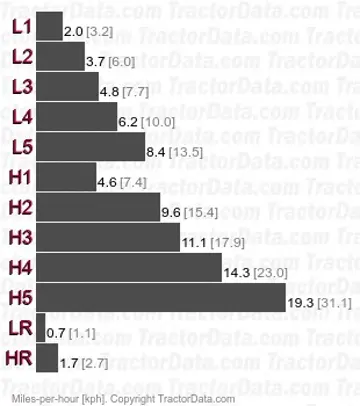

Transmission — Allison HT 754
Transmission | Allison HT 754 |
Type | power shift |
Gears | 10 forward and 2 reverse |
Oil capacity | 10.25 qts (gearbox)
9.7 L |
15.85 qts (transfer case)
15.0 L | |
Five-speed Allison transmission with torque converter and two-speed Cameco transfer case. | |
With 24.5x32 tires. | |
 | |
Dimensions
| 1980 - ????
Four-wheel Drive (4WD) tractor |
|---|---|
1980 - ???? | |
Four-wheel Drive (4WD) tractor | |
1980 - ???? | |
|---|---|
Four-wheel Drive (4WD) tractor |
Cameco 505 Tires | |
|---|---|
Ag front | 24.5x32 |
Ag rear | 24.5x32 |
Dimensions | |
|---|---|
Width | 107 inches
271 cm |
Height (cab) | 138 inches
350 cm |
Shipping weight | 28050 lbs
12723 kg |
Photos

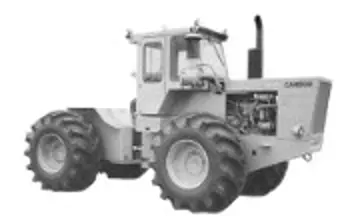

Cameco 505 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Cameco 505 based on its 325 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cameco 505.
Estimated Continuous Field Runtime: 7.7 hrs
Approximately 7.7 hours of continuous field operation at ~75% rated power on a full tank (130 gal / 492.1 L).
Estimated 75% Load Fuel Burn~16.9 gal/hr (64 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cameco 505 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cameco 505.
Converted Equivalents:
Horsepower (HP)325 hp
Kilowatts (kW)242.4 kW
Metric Horsepower (PS / CV)329.5 PS
