Carraro 420.5
The Carraro 420.5 is a tractor produced by Carraro. It is equipped with a 109.5 ci 1.8 L engine. The listed engine power is Diesel (listed): 37.5 hp / 28.0 kW. Transmission: 6 forward and reverse. Drive type: crawler.
Engine Power
Diesel (listed): 37.5 hp / 28.0 kW
Drive & Traction
crawler
Fuel & Capacities
Diesel
Transmission
6 forward and reverse
Overview
 |
|---|
Production | |
|---|---|
Manufacturer | Carraro |
Built in Italy | |
Carraro 420.5 Engine | |
|---|---|
VM 1.8L 3-cyl diesel | |
Engine details ...  |
Carraro 420.5 Transmission | |
|---|---|
6-speed | |
Transmission details ...  |
Carraro 420.5 Power | |
|---|---|
Engine | 37.5 hp
28.0 kW |
Mechanical | |
|---|---|
Drive | crawler |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tracks | |
|---|---|
Tracks | |
Full dimensions and tracks ...  |
Engine
Engine Detail — 109.5 ci / 1.8 L Diesel
Manufacturer | VM HR392A |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 109.5 ci
1.8 L |
Bore/Stroke | 3.622x3.543 inches
92 x 90 mm |
Power | 37.5 hp
28.0 kW |
Rated RPM | 2800 |
Transmission
Transmission — 6 forward and reverse
Gears | 6 forward and reverse |
Dimensions
Carraro 420.5 Tracks |
|---|
Dimensions |
|---|
Photos

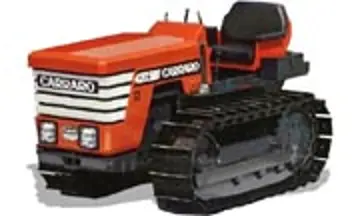

Carraro 420.5 tractor photo
Carraro 420.5 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Carraro 420.5.
Converted Equivalents:
Horsepower (HP)37.5 hp
Kilowatts (kW)28 kW
Metric Horsepower (PS / CV)38 PS
