Carraro 520.5
The Carraro 520.5 is a tractor produced by Carraro. It is equipped with a 174.3 ci 2.9 L engine. The listed engine power is Diesel (listed): 49.3 hp / 36.8 kW. Transmission: 6 forward and reverse. Drive type: crawler.
Engine Power
Diesel (listed): 49.3 hp / 36.8 kW
Drive & Traction
crawler
Fuel & Capacities
Diesel
Transmission
6 forward and reverse
Overview
 |
|---|
Production | |
|---|---|
Manufacturer | Carraro |
Built in Italy | |
Carraro 520.5 Engine | |
|---|---|
VM 2.9L 3-cyl diesel | |
Engine details ...  |
Carraro 520.5 Transmission | |
|---|---|
6-speed | |
Transmission details ...  |
Carraro 520.5 Power | |
|---|---|
Engine | 49.3 hp
36.8 kW |
Mechanical | |
|---|---|
Drive | crawler |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tracks | |
|---|---|
Tracks | |
Full dimensions and tracks ...  |
Engine
Engine Detail — 174.3 ci / 2.9 L Diesel
Manufacturer | VM 1053 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 174.3 ci
2.9 L |
Bore/Stroke | 4.134x4.331 inches
105 x 110 mm |
Power | 49.3 hp
36.8 kW |
Rated RPM | 2300 |
Transmission
Transmission — 6 forward and reverse
Gears | 6 forward and reverse |
Dimensions
Carraro 520.5 Tracks |
|---|
Dimensions |
|---|
Photos

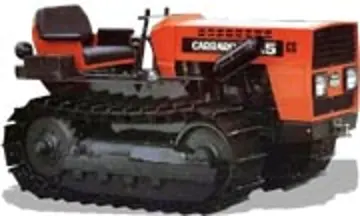

Carraro 520.5 tractor photo
Carraro 520.5 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Carraro 520.5.
Converted Equivalents:
Horsepower (HP)49.3 hp
Kilowatts (kW)36.8 kW
Metric Horsepower (PS / CV)50 PS
