Carraro 6000
The Carraro 6000 is a tractor produced by Carraro. It is equipped with a 195.3 ci 3.2 L engine. The listed engine power is Diesel (listed): 56.2 hp / 41.9 kW. Transmission: 8 forward and 2 reverse. Operating weight: 5115 to 5512 pounds.
Engine Power
Diesel (listed): 56.2 hp / 41.9 kW
Fuel & Capacities
15.9 gal
60.2 L
Transmission
8 forward and 2 reverse
Operating Weight
5115 to 5512 pounds
Overview
 | Utility tractor | Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Carraro |
Utility tractor | |
Built in Italy | |
Carraro 6000 Engine | |
|---|---|
Carraro 3.2L 3-cyl diesel | |
Fuel tank | 15.9 gal
60.2 L |
Engine details ...  | |
Carraro 6000 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Carraro 6000 Power | |
|---|---|
Engine | 56.2 hp
41.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 78.4 inches
199 cm |
Weight | 5115 to 5512 pounds |
Front tire | 6.50x16 |
Rear tire | 13x28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Battery volts | 12 |
Battery AH | 120 |
Engine
Engine Detail — 195.3 ci / 3.2 L Diesel
Manufacturer | Carraro 315 |
Fuel Type | Diesel |
Configuration | 3-cylinder, air-cooled |
Displacement | 195.3 ci
3.2 L |
Bore/Stroke | 4.33x4.33 inches
110 x 110 mm |
Power | 56.2 hp
41.9 kW |
Fuel system | direct injection |
Compression | 17:1 |
Rated RPM | 2000 |
Starter volts | 12 |
Transmission
Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
Four gears, plus reverse, in two ranges. | |
 | |
Dimensions
Carraro 6000 Tires | |
|---|---|
2WD Ag front | 6.50x16 |
4WD Ag front | 9.00x24 |
Ag rear | 13x28 |
Ag front | 6.00x19 |
Ag rear | 14x28 |
11x36 | |
Dimensions | |
|---|---|
Wheelbase | 78.4 inches
199 cm |
2WD Length | 126.7 inches
321 cm |
4WD Length | 132.7 inches
337 cm |
Height | 56.3 inches
143 cm |
2WD Weight | 5115 lbs
2320 kg |
4WD Weight | 5512 lbs
2500 kg |
2WD Ground clearance | 23.6 inches
59 cm |
4WD Ground clearance | 15.8 inches
40 cm |
2WD Front tread | 51.2 to 74.8 inches
130 to 189 cm |
4WD Front tread | 59.1 inches
150 cm |
Rear tread | 51.2 to 76.8 inches
130 to 195 cm |
Photos

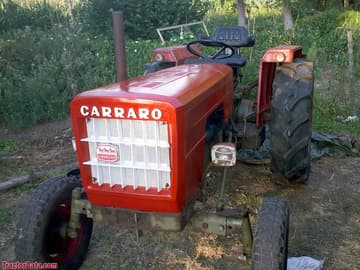

Carraro 6000
Recommended Implements & Sizing Guide
Engineering recommendations for Carraro 6000 based on its 56.2 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Carraro 6000.
Estimated Continuous Field Runtime: 5.4 hrs
Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (15.9 gal / 60.2 L).
Estimated 75% Load Fuel Burn~2.9 gal/hr (11.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Carraro 6000 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Carraro 6000.
Converted Equivalents:
Horsepower (HP)56.2 hp
Kilowatts (kW)41.9 kW
Metric Horsepower (PS / CV)57 PS
Direct Competitor Comparison
Compare Carraro 6000 against same-era industry alternatives in the same horsepower class.
Current Model
Carraro
Carraro 6000
Engine Power:Diesel (listed): 56.2 hp / 41.9 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 504
Engine Power:51.1
Production Years:1961 - 1968
