CaseIH C60

The CaseIH C60 is a tractor produced by Caseih. It is equipped with a 165 ci 2.7 L engine. The listed engine power is Diesel (net): 60 hp / 44.7 kW; Diesel (gross): 64 hp / 47.7 kW. Transmission: 16 forward and 8 reverse. Drive type: 4x2 2WD. Operating weight: 5357 to 7605 pounds.

Overview

	1998 - 2002 CX Utility SeriesUtility tractor CX Utility Series Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Doncaster, England
Original price	$22,400 (1999)

Variants
CX60	deluxe model
C60	basic model

CaseIH C60 Engine
Perkins 2.7L 3-cyl diesel
Engine details ...

CaseIH C60 Power
Engine (gross)	64 hp 47.7 kW
Engine (net)	60 hp 44.7 kW
PTO (claimed)	50 hp 37.3 kW
Drawbar (tested)	48.4 hp 36.1 kW
PTO (tested)	56.5 hp 42.1 kW
Performance test details ...

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Differential lock	mechanical
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Two-post ROPS with straddle platform.

Capacity
Fuel	20 gal 75.7 L
Hydraulic system	9 gal (2WD) 34.1 L
	9.7 gal (4WD) 36.7 L

Hydraulics
Type	open center
Capacity	9 gal (2WD) 34.1 L
	9.7 gal (4WD) 36.7 L
Pressure	2500 psi 172.4 bar
Valves	0 to 3
Pump flow	12.7 gpm 48.1 lpm
Total flow	15.7 gpm 59.4 lpm

Tractor hitch
Rear Type	II/I
Control	mechanical
Rear lift	3,665 lbs 1662 kg
	5,097 lbs (optional) 2311 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540
	540/1000 (optional dual shaft)

Dimensions & Tires
Wheelbase	80.9 inches (2WD) 205 cm
	83.3 inches (4WD) 211 cm
Weight	5357 to 7605 pounds
Front tire	7.50-16
Rear tire	14.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	65
Battery CCA	650
	810 (optional)
Battery volts	12

References
CX Series Tractors published in 1997, by CaseIH

Engine

Engine Detail — 165 ci / 2.7 L Diesel

Manufacturer	Perkins 903.27T
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled
Displacement	165 ci 2.7 L
Bore/Stroke	3.74x5.00 inches 95 x 127 mm
Power (net)	60 hp 44.7 kW
Power (gross)	64 hp 47.7 kW
Fuel system	mechanical direct injection with 5-hole injectors
Air cleaner	dual paper elements
Compression	17.25:1
Rated RPM	2250
Torque	180 lb-ft 244.1 Nm
Torque RPM	1400
Starter volts	12
Oil capacity	8 qts 7.6 L
Oil change	250 h
Coolant capacity	12.57 qts 11.9 L

Transmission

Transmission options
8-speed
16-speed partial power shift
16-speed creeper

Transmission — 8 forward and 4 reverse

Gears	8 forward and 4 reverse
Clutch	12-inch dry disc
Oil capacity	36 qts (2WD) 34.1 L
	38.6 qts (4WD) 36.5 L

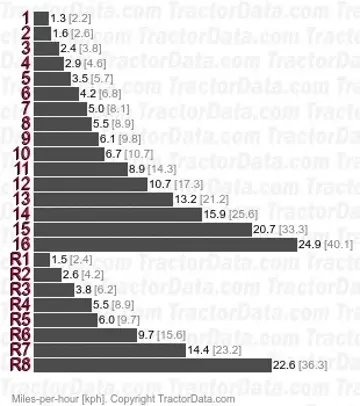

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Clutch	12-inch dry disc
Oil capacity	36 qts (2WD) 34.1 L
	38.6 qts (4WD) 36.5 L

Transmission — 8 forward and reverse

Gears	8 forward and reverse
Oil capacity	36 qts (2WD) 34.1 L
	38.6 qts (4WD) 36.5 L
Transmission
Type	creeper
Gears	16 forward and 8 reverse

Dimensions

CaseIH C60 Tires
Ag front	7.50-16
Ag rear	14.9-28

Dimensions
Wheelbase	80.9 inches (2WD) 205 cm
	83.3 inches (4WD) 211 cm

CaseIH C60 Weight
Shipping	5,357 lbs (2WD) 2429 kg
	6,096 lbs (4WD) 2765 kg
Operating	7,605 lbs 3449 kg
Max capacity	10,150 lbs 4604 kg

Tests

OCED Tractor Test 1894
Diesel 16-speed 4WD April 1999 - August 1999, Link: OCED Tractor Test 1894 file
PTO performance
Max power	56.5 hp 42.1 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Power at rated engine speed	56.2 hp 41.9 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Power at rated PTO speed	55.0 hp 41.0 kW
Fuel use	3.2 gal/hour 12.1 l/hour
Drawbar performance
Max power	48.4 hp 36.1 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Gear 1_high-TA used for power test.
Max pull	9,160 lbs 4154 kg
Gear 1-Low-Direct used for pull test.

Photos

CaseIH C60 tractor photo
