caseih 2394
 | 1984 - 1988
Row-Crop tractor | 1984 - 1988 | Row-Crop tractor |
|---|---|---|---|
1984 - 1988 | |||
Row-Crop tractor | |||
1984 - 1988 | |
|---|---|
Row-Crop tractor |
Series map: 229423942594154.0hp197.0hp217.0hp2394↓ 1984
Note: the CaseIH model 2394 is the same as the J.I. Case 2394. The following data is from the 2394 listing. |
|---|
Transmission options | |
|---|---|
12-speed three-speed power shift | |
24-speed four-speed power shift |
Transmission | |
|---|---|
Type | three-speed power shift |
Gears | 12 forward and 3 reverse |
Oil capacity | 128 qts
121.1 L |
Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range. | |

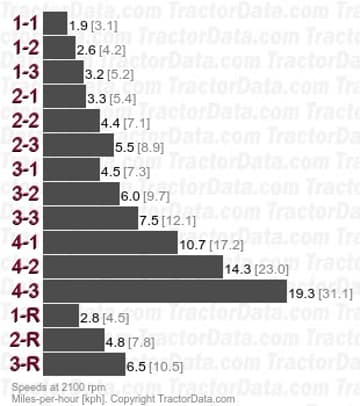

Speeds | |
|---|---|
With 18.4x38 rear tires. | |
 |
Transmission | |
|---|---|
Type | four-speed power shift |
Gears | 24 forward and 3 reverse |
Clutch | hydraulic wet disc |
Oil capacity | 128 qts
121.1 L |
Six power shift gears (1-6), plus reverse, in four ranges (1-4). Reverse does not work in fourth range. | |

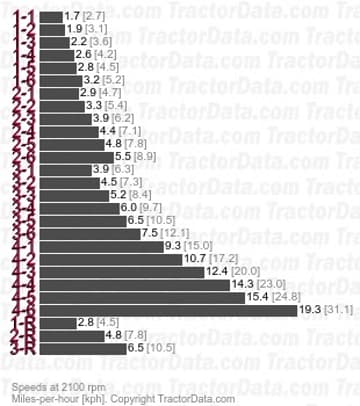

Speeds | |
|---|---|
With 18.4x38 rear tires. | |
 |

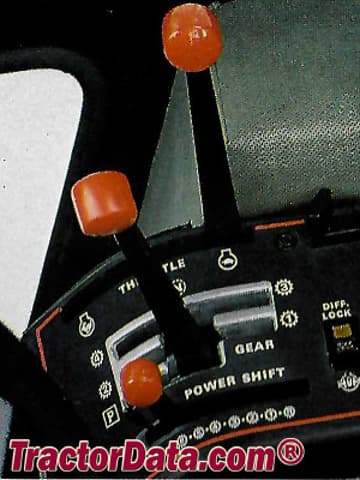

Shift Pattern | |
|---|---|
 |
