caseih 3230

CaseIH 3230 tractor photo
1994 - 1997 3200 Utility SeriesUtility tractor
1994 - 1997
3200 Utility Series
Utility tractor
1994 - 1997
3200 Utility Series
Utility tractor
1994 - 1997
3200 Utility Series
Utility tractor
Transmission options
8-speed synchromesh
8-speed shuttle
16-speed partial power shift
16-speed synchromesh creeper
Transmission
Type
synchromesh
Gears
8 forward and 4 reverse
Clutch
11-inch dry cerametallic

12-inch dry cerametallic (optional)
2WD Oil capacity
35.9 qts 34.0 L
4WD Oil capacity
38.6 qts 36.5 L
Four gears (1-4) in two ranges (L/H) plus reverse range.
Speeds
With 16.9x30 rear tires.

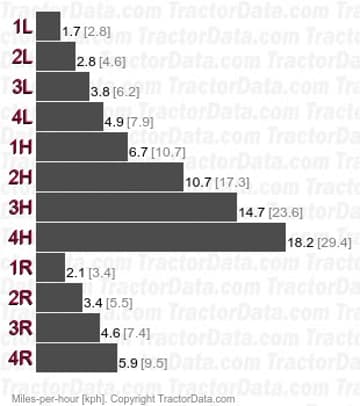

3230  synchromesh speeds
Transmission
Type
shuttle
Gears
8 forward and reverse
Clutch
11-inch dry cerametallic

12-inch dry cerametallic (optional)
2WD Oil capacity
35.9 qts 34.0 L
4WD Oil capacity
38.6 qts 36.5 L
Speeds
With 16.9x30 rear tires.
3230  shuttle speeds
Transmission
Type
partial power shift
Gears
16 forward and 8 reverse
Clutch
11-inch dry cerametallic

12-inch dry cerametallic (optional)
2WD Oil capacity
35.9 qts 34.0 L
4WD Oil capacity
38.6 qts 36.5 L
Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch.
Speeds
With 16.9x30 rear tires.
3230  partial power shift speeds
Shift Pattern

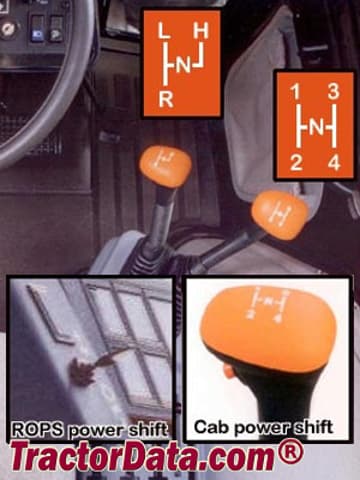

CaseIH 3230 transmission controls
Transmission
Type
synchromesh creeper
Gears
16 forward and 8 reverse
Clutch
11-inch dry cerametallic

12-inch dry cerametallic (optional)
2WD Oil capacity
35.9 qts 34.0 L
4WD Oil capacity
38.6 qts 36.5 L
Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes.
Speeds
With With 16.9x30 rear tires. Speeds in direct mode same as regular synchromesh transmission.

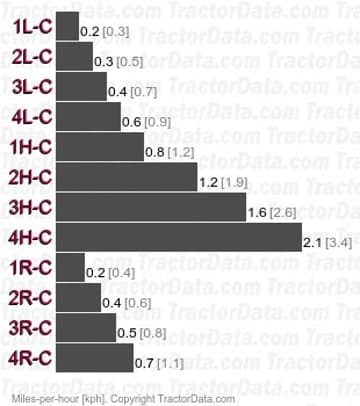

3230  synchromesh creeper speeds
