caseih 3294
![]() | 1985 - 1986
Row-Crop tractor | 1985 - 1986 | Row-Crop tractor |
|---|---|---|---|
1985 - 1986 | |||
Row-Crop tractor | |||
1985 - 1986 | |
|---|---|
Row-Crop tractor |
Series map: 32943394197.0hp180.0hp*3294↓ 1984-1985*Estimated engine power for comparison only.
Note: the CaseIH model 3294 is the same as the J.I. Case 3294. The following data is from the 3294 listing. |
|---|
Transmission | |
|---|---|
Type | three-speed power shift |
Gears | 12 forward and 3 reverse |
Oil capacity | 112 qts
106.0 L |
Four ranges and three power shifts (clutchless on-the-move shifting) in each range. | |

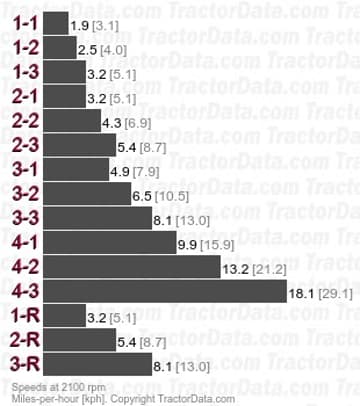

Speeds | |
|---|---|
With 18.4x38 rear tires. | |
![]() |
