caseih 3594
 | 1985 - 1988
Row-Crop tractor | 1985 - 1988 | Row-Crop tractor |
|---|---|---|---|
1985 - 1988 | |||
Row-Crop tractor | |||
1985 - 1988 | |
|---|---|
Row-Crop tractor |
Transmission options | |
|---|---|
24-speed partial power shift | |
12-speed partial power shift |
Transmission | |
|---|---|
Type | partial power shift |
Gears | 24 forward and 3 reverse |
Oil capacity | 133 qts
125.9 L |
Four ranges with six power shift gears in each range. | |

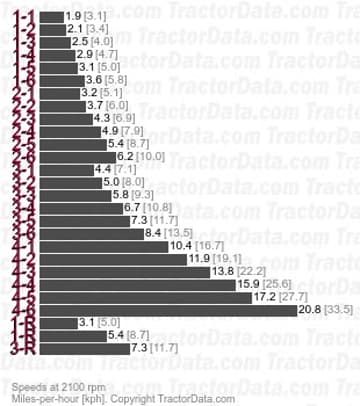

Speeds | |
|---|---|
With 20.8x38 rear tires. | |
 |

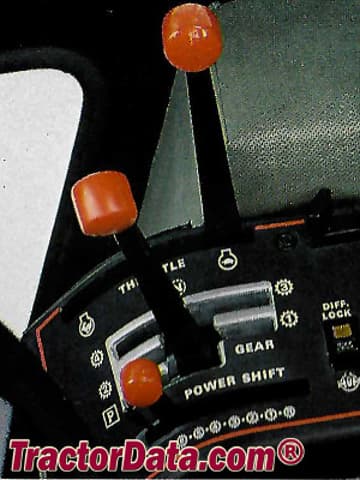

Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Type | partial power shift |
Gears | 12 forward and 3 reverse |
Oil capacity | 133 qts
125.9 L |
Four ranges with three power shift gears in each range. | |

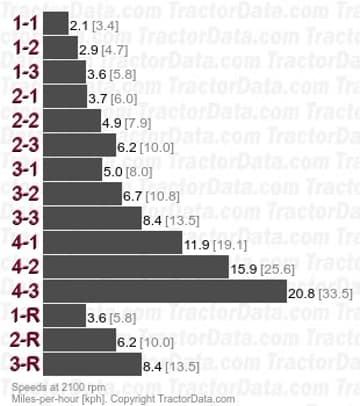

Speeds | |
|---|---|
With 20.8x38 rear tires. | |
 |
