CaseIH 4210

The CaseIH 4210 is a tractor produced by Caseih. It is equipped with a 239 ci 3.9 L engine. The listed engine power is Diesel (net): 68 hp / 50.7 kW; Diesel (gross): 72 hp / 53.7 kW. Transmission: 16 forward and 8 reverse. Operating weight: 6327 to 7085 pounds.

Overview

	1994 - 1997 4200 Utility SeriesUtility tractor 4200 Utility Series Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Doncaster, England
Original price was $26,000 in 1997

CaseIH 4210 Engine
Case 3.9L 4-cyl diesel
Engine details ...

CaseIH 4210 Power
Engine (gross)	72 hp 53.7 kW
Engine (net)	68 hp 50.7 kW
PTO (claimed)	62 hp 46.2 kW
Drawbar (tested)	52.90 hp 39.4 kW
PTO (tested)	61.02 hp 45.5 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	planetary
ROPS Differential lock	mechanical
Cab Differential lock	electro-hydraulic
Power steering
Hydraulic wet disc brakes
Two-post ROPS. Cab optional with air-conditioning.

Capacity
ROPS Fuel	20 gal 75.7 L
Cab Fuel	29.6 gal 112.0 L
2WD Hydraulic system	9 gal 34.1 L
	9.7 gal (cab) 36.7 L

Hydraulics
Type	open center
2WD Capacity	9 gal 34.1 L
	9.7 gal (cab) 36.7 L
Pressure	2500 psi 172.4 bar
Valves	0 to 3
Total flow	16.1 gpm 60.9 lpm
	18.4 gpmOptOptional 69.6 lpm

Tractor hitch
Rear Type	II
Control	draft and position control
Rear lift	3665 lbs 1662 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540 (1.375)
	540/1000 (1.375)OptOptional
Engine RPM	540@2140

Dimensions & Tires
2WD Wheelbase	88.7 inches 225 cm
4WD Wheelbase	88 inches 223 cm
Weight	6327 to 7085 pounds
Front tire	7.50-16
2WD Rear tire	16.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
	65 *65A alternator standardw with cab, optional with ROPS.
Battery CCA	650
	810 OptOptional
Battery volts	12

References
New 3200 and 4200 Series Tractors published in 1994, by Case IH
3200/4200 Series Tractors published in 1994, by Case IH

Engine

Engine Detail — 239 ci / 3.9 L Diesel

Manufacturer	Case D239
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	239 ci 3.9 L
Power (net)	68 hp 50.7 kW
Power (gross)	72 hp 53.7 kW
Air cleaner	dry
Pre-heating	thermostart OptOptional
	ether OptOptional
Rated RPM	2400
Starter volts	12
Oil capacity	10.4 qts 9.8 L
Oil change	200 h
Coolant capacity	14.5 qts 13.7 L

Transmission

Transmission options
8-speed synchromesh
8-speed shuttle
16-speed partial power shift
16-speed synchromesh creeper

Transmission — 8 forward and 4 reverse synchromesh

Type	synchromesh
Gears	8 forward and 4 reverse
Clutch	12-inch dry cerametallic
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
Four gears (1-4) in two ranges (L/H) plus reverse range.
With 16.9x30 rear tires.

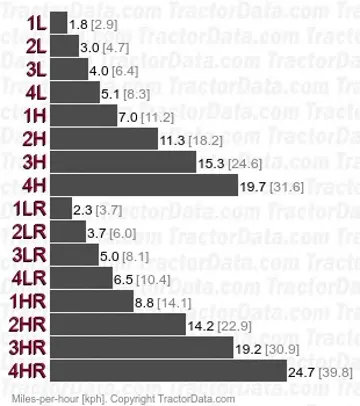

Transmission — 8 forward and reverse shuttle

Type	shuttle
Gears	8 forward and reverse
Clutch	12-inch dry cerametallic
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
With 16.9x30 rear tires.

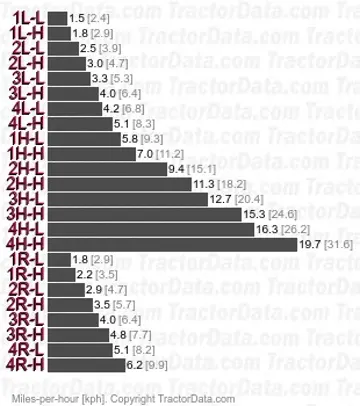

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Clutch	12-inch dry cerametallic
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch.
With 16.9x30 rear tires.

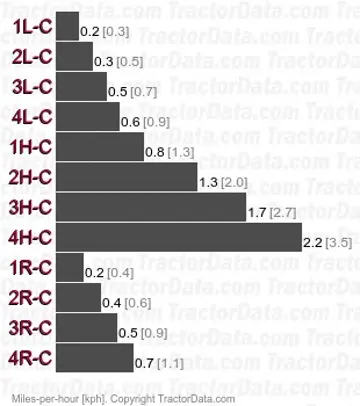

Transmission — 16 forward and 8 reverse synchromesh creeper

Type	synchromesh creeper
Gears	16 forward and 8 reverse
Clutch	12-inch dry cerametallic
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes.
With With 16.9x30 rear tires. Speeds in direct mode same as regular synchromesh transmission.

Dimensions

CaseIH 4210 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 16.9-28
4WD Standard tires (ag)	Front: 8.3-24. Rear: 16.9-28

Dimensions
2WD Wheelbase	88.7 inches 225 cm
4WD Wheelbase	88 inches 223 cm
Front tread	52 to 77 inches 132 to 195 cm (2WD straight)
Front tread	48 to 80 inches 121 to 203 cm (2WD sweptback)
Front tread	52 to 80 inches 132 to 203 cm (2WD low)
Front tread	52 to 77 inches 132 to 195 cm (2WD low-low)
Front tread	88 to 96 inches 223 to 243 cm (tobacco)

CaseIH 4210 Weight
2WD ROPS Shipping	6327 lbs 2869 kg
4WD ROPS Shipping	7085 lbs 3213 kg
ROPS Max capacity	10150 lbs 4604 kg
Cab Max capacity	12125 lbs 5499 kg

Tests

Nebraska Tractor Test 1604
Diesel 16-speed 2WD October 7 - 14, 1986 Link: Nebraska Tractor Test 1604 file
PTO performance
Power at rated engine speed	61.02 hp 45.5 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Power at rated PTO speed	58.80 hp 43.8 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Drawbar performance
Max power	52.90 hp 39.4 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Gear 1HDD used for power test.
Max pull	7207 lbs 3269 kg
Gear 2LDD used for pull test.

Photos

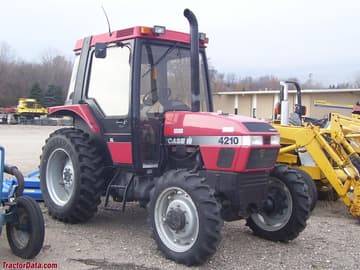

Case IH 4210 utility with cab and four-wheel drive.

Case IH 4210 ROPS with two-wheel drive and low-profile axles. Marketing photo.
