CaseIH 485XL
The CaseIH 485XL is a tractor produced by Caseih. It is equipped with a 179 ci 2.9 L engine. The rated power output is 52 hp 38.8 kW. Transmission: Torque Amplifier. Operating weight: 5620 lbs 2549 kg.
Engine Power
52 hp
38.8 kW
Fuel & Capacities
29.6 gal
112.0 L
Transmission
Torque Amplifier
Operating Weight
5620 lbs
2549 kg
Caseih 485XL Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1985 - 1990
85 XL SeriesUtility tractor |
|---|---|
1985 - 1990 | |
85 XL Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | CaseIH |
Utility tractor | |
Built in Doncaster, England | |
CaseIH 485XL Engine | |
|---|---|
CaseIH 2.9L 3-cyl diesel | |
Fuel tank | 29.6 gal
112.0 L |
Engine details ...  | |
CaseIH 485XL Power | |
|---|---|
Engine | 52 hp
38.8 kW |
PTO (claimed) | 41 hp
30.6 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Secura cab standard. | |
Hydraulics | |
|---|---|
Pressure | 2500 psi
172.4 bar |
Pump flow | 12.4 gpm
46.9 lpm |
Steering flow | 2.6 gpm
9.8 lpm |
Steering press. | 1550 psi
106.9 bar |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | Top link draft sensing. |
Rear lift | 3700 lbs
1678 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540 |
Engine RPM | 540@1936 |
Dimensions & Tires | |
|---|---|
Wheelbase | 84.25 inches
213 cm |
Weight | 5620 lbs
2549 kg |
Front tire | 7.50-16 |
Rear tire | 12.4-36 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 45 |
Battery CCA | 420 |
Battery volts | 12 |
Battery AH | 95 |
Engine
Engine Detail — 179 ci / 2.9 L Diesel
Manufacturer | CaseIH D-179 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 179 ci
2.9 L |
Bore/Stroke | 3.88x5.06 inches
99 x 129 mm |
Power | 52 hp
38.8 kW |
Compression | 15:1 |
Rated RPM | 2180 |
Idle RPM | 815-2180 |
Torque | 134.2 lb-ft
182.0 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 12 qts
11.4 L |
Transmission
Transmission options | |
|---|---|
8-speed synchromesh | |
16-speed two-speed power shift |
Transmission — 8 forward and 4 reverse synchromesh
Type | synchromesh |
Gears | 8 forward and 4 reverse |
Clutch | 280mm dry disc |
Four synchronized gears in two ranges, plus reverse range. | |
 | |

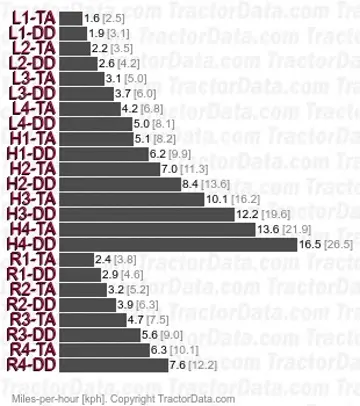

Transmission — Torque Amplifier
Transmission | Torque Amplifier |
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Clutch | 280mm dry disc |
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range. Two-speed torque amplifier provides an on-the-move shift to a lower speed. | |
 | |
Dimensions
CaseIH 485XL Tires | |
|---|---|
Standard tires (ag) | Front: 7.50-16. Rear: 12.4-36 |
Dimensions | |
|---|---|
Wheelbase | 84.25 inches
213 cm |
Length | 142.5 inches
361 cm |
Height (cab) | 99.2 inches
251 cm |
Weight | 5620 lbs
2549 kg |
