CaseIH 585XL
The CaseIH 585XL is a tractor produced by Caseih. It is equipped with a 206 ci 3.4 L engine. The listed engine power is Diesel (listed): 60 hp / 44.7 kW. Transmission: Torque Amplifier. Operating weight: 6400 to 7200 pounds.
Engine Power
Diesel (listed): 60 hp / 44.7 kW
Fuel & Capacities
29.6 gal
112.0 L
Transmission
Torque Amplifier
Operating Weight
6400 to 7200 pounds
Overview
 | 1985 - 1990
85 XL SeriesUtility tractor
85 XL Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | CaseIH |
Utility tractor | |
Built in Doncaster, England | |
CaseIH 585XL Engine | |
|---|---|
CaseIH 3.4L 4-cyl diesel | |
Fuel tank | 29.6 gal
112.0 L |
Engine details ...  | |
CaseIH 585XL Power | |
|---|---|
Engine | 60 hp
44.7 kW |
PTO (claimed) | 53.4 hp
39.8 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Secura cab standard. | |
Hydraulics | |
|---|---|
Pressure | 2500 psi
172.4 bar |
Pump flow | 12.4 gpm
46.9 lpm |
Steering flow | 2.6 gpm
9.8 lpm |
Steering press. | 1500 psi
103.4 bar |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | Top link draft sensing. |
Rear lift | 4400 lbs
1995 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/1000 |
Engine RPM | 540@2140 |
1000@2190 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 84.7 inches
215 cm |
4WD Wheelbase | 85 inches
215 cm |
Weight | 6400 to 7200 pounds |
Front tire | 7.50-18 |
2WD Rear tire | 13.6-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 45 |
Battery CCA | 420 |
Battery volts | 12 |
Battery AH | 95 |
References | |
|---|---|
 | |
85 Series published in 1985, by CaseIH |
Engine
Engine Detail — 206 ci / 3.4 L Diesel
Manufacturer | CaseIH D-206 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 206 ci
3.4 L |
Bore/Stroke | 3.88x4.37 inches
99 x 111 mm |
Power | 60 hp
44.7 kW |
Compression | 15:1 |
Rated RPM | 2300 |
Idle RPM | 700-2560 |
Torque | 162.3 lb-ft
220.1 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
8-speed synchromesh | |
16-speed two-speed power shift |
Transmission — 8 forward and 4 reverse synchromesh
Type | synchromesh |
Gears | 8 forward and 4 reverse |
Clutch | 280mm dry disc |
Four synchronized gears in two ranges, plus reverse range. | |
 | |

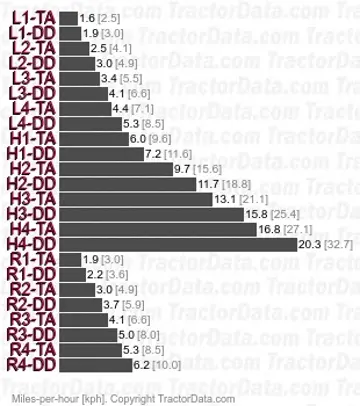

Transmission — Torque Amplifier
Transmission | Torque Amplifier |
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Clutch | 280mm dry disc |
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range. Two-speed torque amplifier provides an on-the-move shift to a lower speed. | |
 | |
Dimensions
CaseIH 585XL Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-18. Rear: 13.6-38 |
4WD Standard tires (ag) | Front: 12.4-24. Rear: 13.6-38 |
Dimensions | |
|---|---|
2WD Wheelbase | 84.7 inches
215 cm |
4WD Wheelbase | 85 inches
215 cm |
Length | 142.5 inches
361 cm |
Height (cab) | 103.1 inches
261 cm |
2WD Weight | 6400 lbs
2903 kg |
4WD Weight | 7200 lbs
3265 kg |
Photos
CaseIH 585XL tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Caseih 585XL based on its 60 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih 585XL.
Estimated Continuous Field Runtime: 9.5 hrs
Approximately 9.5 hours of continuous field operation at ~75% rated power on a full tank (29.6 gal / 112 L).
Estimated 75% Load Fuel Burn~3.1 gal/hr (11.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Caseih 585XL Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih 585XL.
Converted Equivalents:
Horsepower (HP)60 hp
Kilowatts (kW)44.7 kW
Metric Horsepower (PS / CV)60.8 PS
Direct Competitor Comparison
Compare CaseIH 585XL against same-era industry alternatives in the same horsepower class.
Current Model
Caseih
CaseIH 585XL
Engine Power:Diesel (listed): 60 hp / 44.7 kW
★ Baseline Reference
