CaseIH 695

The CaseIH 695 is a tractor produced by Caseih. It is equipped with a 238.8 ci 3.9 L engine. The listed engine power is Diesel (net): 68 hp / 50.7 kW; Diesel (gross): 72 hp / 53.7 kW. Transmission: 16 forward and 8 reverse. Operating weight: 5720 to 7585 pounds.

Overview

	1991 - 1994 95 Utility SeriesUtility tractor 95 Utility Series Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Doncaster, England
Original price was $24,800 in 1994

CaseIH 695 Engine
Case IH 3.9L 4-cyl diesel
Engine details ...

CaseIH 695 Power
Engine (gross)	72 hp 53.7 kW
Engine (net)	68 hp 50.7 kW
PTO (claimed)	62 hp 46.2 kW
Drawbar (tested)	52.90 hp 39.4 kW
PTO (tested)	61.02 hp 45.5 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Two-post ROPS. Cab optional with air-conditioning.

Capacity
ROPS Fuel	20 gal 75.7 L
Cab Fuel	29.5 gal 111.7 L
Hydraulic system	9 gal 34.1 L

Hydraulics
Type	open center
Capacity	9 gal 34.1 L
Valves	1
Pump flow	15.8 gpm 59.8 lpm

Tractor hitch
Rear Type	II
Rear lift	3614 lbs 1639 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	88.7 inches 225 cm
Weight	5720 to 7585 pounds
Front tire	7.50-16
Rear tire	14.9-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
95 Series Tractors published in 1990, by CaseIH

Engine

Engine Detail — 238.8 ci / 3.9 L Diesel

Manufacturer	Case IH
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	238.8 ci 3.9 L
Bore/Stroke	3.875x5.06 inches 98 x 129 mm
Power (net)	68 hp 50.7 kW
Power (gross)	72 hp 53.7 kW
Air cleaner	dual paper elements
Compression	16:1
Rated RPM	2400
Idle RPM	650-2705
Starter volts	12
Oil capacity	10.4 qts 9.8 L
Coolant capacity	14.5 qts 13.7 L

Transmission

Transmission options
8-speed partially synchronized
16-speed partial power shift
8-speed synchronized shuttle
16-speed creeper

Transmission — 8 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	8 forward and 4 reverse
Clutch	dry disc
Oil capacity	36 qts 34.1 L
Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges.
With 16.9x30 rear tires.

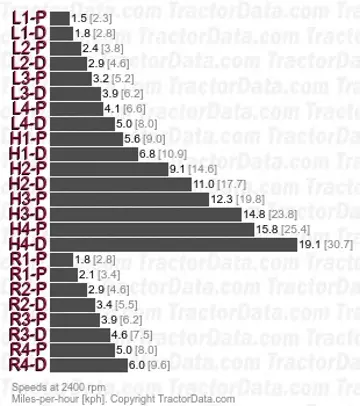

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Oil capacity	36 qts 34.1 L
Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear.
With 16.9x30 rear tires.

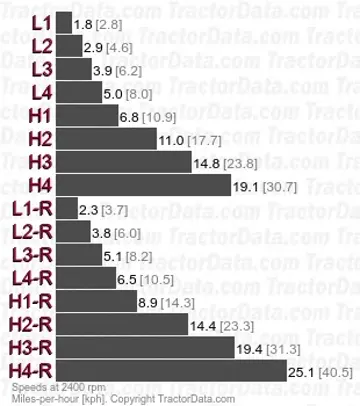

Transmission — 8 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	8 forward and reverse
Oil capacity	36 qts 34.1 L
Four gears each in high and low ranges, both forward and reverse.
With 16.9x30 rear tires.

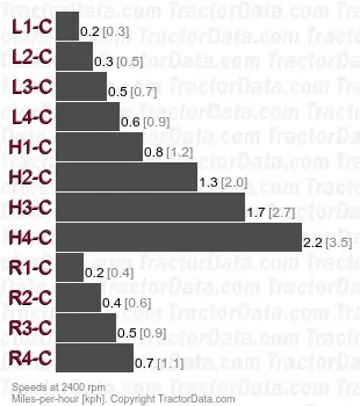

Transmission — 16 forward and 8 reverse creeper

Type	creeper
Gears	16 forward and 8 reverse
Four gears with high, low, and reverse ranges plus direct or creeper mode.
With 16.9x30 rear tires.

Dimensions

CaseIH 695 Tires
Ag front	7.50-16
Ag rear	14.9-24

Dimensions
Wheelbase	88.7 inches 225 cm
Length	142 inches 360 cm
Width	75 inches*Width at minimum tread. 190 cm
Height (ROPS)	96.5 inches 245 cm
Height (cab)	100.4 inches 255 cm
2WD Clearance (front axle)	20.8 inches 52 cm
4WD Clearance (front axle)	14.5 inches 36 cm

CaseIH 695 Weight
2WD ROPS Shipping	5720 lbs 2594 kg
2WD Cab Shipping	6520 lbs 2957 kg
$WD Cab Shipping	6785 lbs 3077 kg
4WD Cab Shipping	7585 lbs 3440 kg
Ballasted	8845 lbs 4012 kg

Tests

Nebraska Tractor Test 1604
Diesel 16-speed 2WD October 7 - 14, 1986 Link: Nebraska Tractor Test 1604 file
PTO performance
Power at rated engine speed	61.02 hp 45.5 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Power at rated PTO speed	58.80 hp 43.8 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Drawbar performance
Max power	52.90 hp 39.4 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Gear 10 used for power test.

Attachments

Attachment overview
Case IH 2250 loader
Case IH 2255 loader
