CaseIH 844 XL
The CaseIH 844 XL is a tractor produced by Caseih. It is equipped with a 268 ci 4.4 L engine. The rated power output is 80 hp 59.7 kW. Transmission: IH-Total-synchron. Operating weight: 8069 to 8752 pounds.
Engine Power
80 hp
59.7 kW
Fuel & Capacities
Diesel
Transmission
IH-Total-synchron
Operating Weight
8069 to 8752 pounds
Caseih 844 XL Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1985 - 1987
Utility tractor |
|---|---|
1985 - 1987 | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | CaseIH |
Utility tractor | |
Built in Neuss, Germany | |
CaseIH 844 XL Engine | |
|---|---|
International Harvester 4.4L 4-cyl diesel | |
Engine details ...  |
CaseIH 844 XL Power | |
|---|---|
Engine | 80 hp
59.7 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Cab standard with heat. | |
Hydraulics | |
|---|---|
Pressure | 2538 psi
175.0 bar |
Valves | up to 3 |
Pump flow | 8.7 gpm
32.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | lower link draft sensing |
Rear lift | 6947 lbs
3151 kg |
8835 lbs (optional)
4007 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
540/1000 (optional 4WD) | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 94.1 inches
239 cm |
4WD Wheelbase | 92.5 inches
234 cm |
Weight | 8069 to 8752 pounds |
Front tire | 7.50-18 |
Rear tire | 16.9R34 (2WD) |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 55 |
Battery volts | 12 |
Engine
Engine Detail — 268 ci / 4.4 L Diesel
Manufacturer | International Harvester D-268 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 268 ci
4.4 L |
Bore/Stroke | 3.937x5.50 inches
100 x 140 mm |
Power | 80 hp
59.7 kW |
Fuel system | direct injection |
Rated RPM | 2300 |
Torque | 218.3 lb-ft
296.0 Nm |
Torque RPM | 1300 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 12.7 qts
12.0 L |
Oil change | 200 h |
Transmission
Transmission options | |
|---|---|
16-speed | |
8-speed |

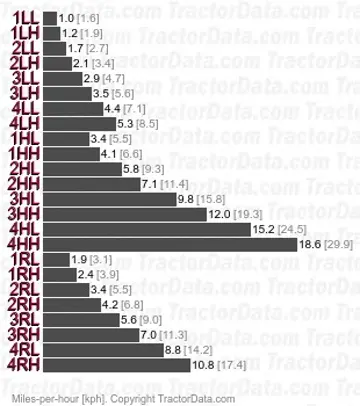

Transmission — IH-Total-synchron
Transmission | IH-Total-synchron |
Gears | 16 forward and 8 reverse |
With 16.9R34 rear tires. | |
 | |
Transmission — 8 forward and 4 reverse
Gears | 8 forward and 4 reverse |
Dimensions
CaseIH 844 XL Tires | |
|---|---|
Standard tires (ag) | Front: 7.50-18. Rear: 16.9R34 (2WD) |
Front: 12.4R24. Rear: 16.9R34 (4WD) | |
Dimensions | |
|---|---|
2WD Wheelbase | 94.1 inches
239 cm |
4WD Wheelbase | 92.5 inches
234 cm |
2WD Length | 153.2 inches
389 cm |
4WD Length | 156.3 inches
397 cm |
Width | 80.7 inches
204 cm |
Height (cab) | 106.2 inches
269 cm |
102.1 inches (low cab)
259 cm | |
2WD Weight | 8069 lbs
3660 kg |
4WD Weight | 8752 lbs
3969 kg |
2WD Clearance (front axle) | 19.1 inches
48 cm |
4WD Clearance (front axle) | 15.9 inches
40 cm |
Front tread | 52.9 to 73.1 inches
134 to 185 cm (2WD) |
Front tread | 62.1 to 71.2 inches
157 to 180 cm (4WD) |
Rear tread | 58 to 77.7 inches
147 to 197 cm |
Photos
CaseIH 844 XL tractor photo
