CaseIH 9270

The CaseIH 9270 is a tractor produced by Caseih. It is equipped with a 855 ci 14.0 L engine. The rated power output is 27 gpm 102.2 lpm. Transmission: SyncroShift. Operating weight: 34,045 lbs 15442 kg.

Engine Power
27 gpm 102.2 lpm
Fuel & Capacities
250 gal 946.2 L
Transmission
SyncroShift
Operating Weight
34,045 lbs (20.8R42 duals) 15442 kg

Caseih 9270 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

CaseIH 9270 tractor photo
1990 - 1995 9200 SeriesFour-wheel Drive (4WD) tractor
1990 - 1995
9200 Series
Four-wheel Drive (4WD) tractor
Production
Manufacturer
CaseIH
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price was $119,000 in 1995
CaseIH 9270 Engine
Cummins 14.0L 6-cyl diesel
Engine details ...
CaseIH 9270 Power
Engine
335 hp 249.8 kW
PTO (claimed)
308 hp 229.7 kW
Drawbar (tested)
264.77 hp 197.4 kW
PTO (tested)
317.50 hp 236.8 kW
Performance test details ...
Mechanical
Four-wheel drive
Steering
hydrostatic power
Integrated hydraulic wet disc brakes
Cab standard with air-conditioning. Optional deluxe cab adds side and rear window wipers plus internal storage compartments.
Capacity
Fuel
250 gal 946.2 L
Hydraulic system
26 gal 98.4 L
Hydraulics
Type
closed center
Capacity
26 gal 98.4 L
Pressure
2500 psi 172.4 bar
Valves
4
Powershift Total flow
27 gpm 102.2 lpm
SyncroShift Total flow
30 gpm 113.6 lpm
Tractor hitch
Rear Type
III OptOptional
Rear lift
14000 lbs 6350 kg
Power Take-off (PTO)
Rear PTO
independent OptOptional
Rear PTO Type
1000
Engine RPM
1000@2098
Dimensions & Tires
Wheelbase
141.5 inches 359 cm
Weight
34,045 lbs 15442 kg
Front tire
24.5-32
Rear tire
24.5-32
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
9270 references literature
9200 Series 4WD published in 1993, by CaseIH

Engine

Engine Detail — 855 ci / 14.0 L Diesel

Manufacturer
Cummins NTA-855
Configuration
turbocharged aftercooled diesel, 6-cylinder, liquid-cooled
Displacement
855 ci 14.0 L
Bore/Stroke
5.50x6.00 inches 140 x 152 mm
Power
335 hp 249.8 kW
Air cleaner
dual paper elements
Compression
14.5:1
Rated RPM
2100
Torque
1131 lb-ft 1533.6 Nm
Torque RPM
1400
Starter volts
12
Oil capacity
44 qts 41.6 L
Coolant capacity
66 qts 62.5 L

Transmission

Transmission options
12-speed full power shift
12-speed fully synchronized

Transmission — 12 forward and 3 reverse full power shift

Type
full power shift
Gears
12 forward and 3 reverse
Clutch
hydraulic wet disc
Full power shift transmission operated with two right-hand levers; one for shifting gears and the other for forward/reverse. Skip-Shift feature allows the transmission to quickly shift from first into higher gears (4th, 6th, 8th).
With 24.5x32 tires.
9270 full power shift speeds

Transmission — SyncroShift

Transmission
SyncroShift
Type
fully synchronized
Gears
12 forward and 3 reverse
Clutch
hydraulic wet disc

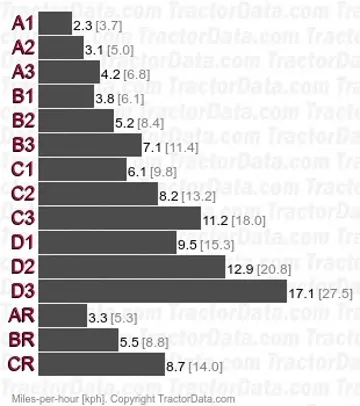

Three gears (1-3) plus reverse (R) in four ranges (A-D). Synchronized shifting between gears and ranges.
With 24.5x32 tires.
9270 SyncroShift fully synchronized speeds

Dimensions

CaseIH 9270 Tires
Ag front
24.5-32
Ag rear
24.5-32
Dimensions
Wheelbase
141.5 inches 359 cm
Length
279.5 inches 709 cm
Width
96 inches (minimum) 243 cm
163.9 inches (duals) 416 cm
Height (exhaust)
149.6 inches 379 cm
Operating weight
34,045 lbs (20.8R42 duals) 15442 kg

Tests

OCED Tractor Test 1659
Diesel SyncroShift 4WD June 16 - 19, 1992 Link: OCED Tractor Test 1659 file
PTO performance
Max power
317.50 hp 236.8 kW
Fuel use
17.2 gal/hour 65.1 l/hour
Power at rated engine speed
299.06 hp 223.0 kW
Fuel use
17.5 gal/hour 66.2 l/hour
Drawbar performance
Max power
264.77 hp 197.4 kW
Fuel use
17.4 gal/hour 65.9 l/hour
Gear 4 used for power test.
Max pull
34,197 lbs 15511 kg

Photos

CaseIH 9270 tractor photo

CaseIH 9270 tractor photo
