CaseIH JX100U

The CaseIH JX100U is a tractor produced by Caseih. It is equipped with a 238.5 ci 3.9 L engine. The rated power output is 92 hp 68.6 kW. Transmission: 20 forward and 12 reverse. Operating weight: 8070 to 8710 pounds.

Overview

	2002 - 2003 JXU Maxxima SeriesUtility tractor
2002 - 2003
JXU Maxxima Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Italy

CaseIH JX100U Engine
Iveco 3.9L 4-cyl diesel
Fuel tank	33.5 gal 126.8 L
Engine details ...

CaseIH JX100U Power
Engine (gross)	92 hp 68.6 kW
PTO (claimed)	82 hp 61.1 kW
PTO (tested)	83.5 hp 62.3 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Independent hydraulic wet disc brakes
Two-post folding ROPS. Cab optional.

Hydraulics
Type	open center
Valves	2 or 3
Pump flow	14.5 gpm 54.9 lpm
Total flow	20 gpm 75.7 lpm
Steering flow	5.5 gpm 20.8 lpm

Tractor hitch
Rear Type	II
Control	mechanical lower-link draft sensing
Rear lift	7900 lbs 3583 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	92.2 inches 234 cm
4WD Wheelbase	91.1 inches 231 cm
Weight	8070 to 8710 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	85
Battery CCA	960
Battery volts	12

Engine

Engine Detail — 238.5 ci / 3.9 L Diesel

Manufacturer	Iveco
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	238.5 ci 3.9 L
Bore/Stroke	4.094x4.528 inches 104 x 115 mm
Power (gross)	92 hp 68.6 kW
Fuel system	mechanical direct injection
Air cleaner	dual paper elements
Pre-heating	thermostart
Compression	16.5:1
Rated RPM	2500
Starter volts	12

Transmission

Transmission options
24-speed two-speed power shift
24-speed power shuttle
20-speed syncromesh

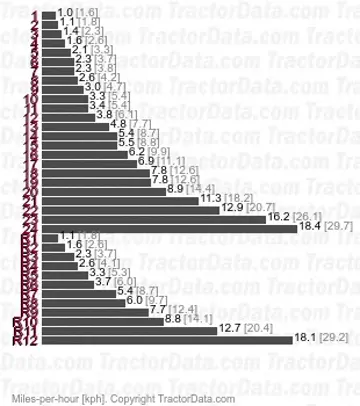

Transmission — 24 forward and 12 reverse two-speed power shift

Type	two-speed power shift
Gears	24 forward and 12 reverse
Two-speed power shift with left-hand synchronized shuttle.

Transmission — 24 forward and reverse power shuttle

Type	power shuttle
Gears	24 forward and reverse
Four gears (1-4) in three ranges (I, II, III) with push-button power shift and power shuttle

Transmission — 20 forward and 12 reverse syncromesh

Type	syncromesh
Gears	20 forward and 12 reverse

Dimensions

CaseIH JX100U Tires

Dimensions
2WD Wheelbase	92.2 inches 234 cm
4WD Wheelbase	91.1 inches 231 cm

CaseIH JX100U Weight
2WD Operating	8,070 lbs 3660 kg
4WD Operating	8,710 lbs 3950 kg
2WD Ballasted	9,885 lbs 4483 kg
4WD Ballasted	10,525 lbs 4774 kg

CaseIH JX100U Height
ROPS	108.75 inches 276 cm
Cab	103.25 inches 262 cm
Exhaust	109.5 inches 278 cm

Tests

OCED Tractor Test 2079
Diesel 24-speed 4WD October 1, 2002 - December 1, 2003 Link: OCED Tractor Test 2079 file
PTO performance
Max power	83.5 hp 62.3 kW
Fuel use	4.9 gal/hour 18.5 l/hour
Power at rated engine speed	82.6 hp 61.6 kW
Fuel use	4.9 gal/hour 18.5 l/hour
Power at rated PTO speed	83.1 hp 62.0 kW
Fuel use	4.7 gal/hour 17.8 l/hour
