CaseIH JX1080U

The CaseIH JX1080U is a tractor produced by Caseih. It is equipped with a 273.7 ci 4.5 L engine. The listed engine power is Diesel (gross): 80 hp / 59.7 kW. Transmission: 20 forward and 12 reverse. Operating weight: 6393 to 8875 pounds.

Engine Power
Diesel (gross): 80 hp / 59.7 kW
Fuel & Capacities
33.5 gal 126.8 L
Transmission
20 forward and 12 reverse
Operating Weight
6393 to 8875 pounds

Overview

CaseIH JX1080U tractor photo
2004 - 2008 JXU Maxxima SeriesUtility tractor JXU Maxxima Series Utility tractor
Production
Manufacturer
CaseIH
Utility tractor
Built in Jesi, Italy
CaseIH JX1080U Engine
CaseIH 4.5L 4-cyl diesel
Fuel tank
33.5 gal 126.8 L
Engine details ...
CaseIH JX1080U Power
Engine (gross)
80 hp 59.7 kW
PTO (claimed)
69 hp 51.5 kW
Drawbar (tested)
58.2 hp 43.4 kW
PTO (tested)
71.6 hp 53.4 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lock
electro-hydraulic
Power steering
Differential hydraulic wet disc brakes
Flat-platform with two-post folding ROPS. Optional cab with air-conditioning.
Hydraulics
Type
open center
Valves
2 to 3
Pump flow
14.5 gpm 54.9 lpm
Total flow
20 gpm 75.7 lpm
Steering flow
5.5 gpm 20.8 lpm
Tractor hitch
Rear Type
II/I
Control
mechanical lower link
electronic draft control optional with cab
Rear lift (at 24"/610mm)
5,745 lbs 2605 kg
6,445 lbsOptOptional 2923 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
electro-hydraulic wet disc
Rear PTO Type
540/1000
Engine RPM
540@2200
1000@2380
Dimensions & Tires
2WD Wheelbase
92.2 inches 234 cm
4WD Wheelbase
91.1 inches 231 cm
Weight
6393 to 8875 pounds
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
120
Battery CCA
960
Battery volts
12
References
JX1080U references literature
JXU Maxxima published in 2004, by CaseIH
JXU Series Maxxima Tractors published in 2004, by CaseIH

Engine

Engine Detail — 273.7 ci / 4.5 L Diesel

Manufacturer
CaseIH
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
273.7 ci 4.5 L
Bore/Stroke
4.094x5.197 inches 104 x 132 mm
Power (gross)
80 hp 59.7 kW
Fuel system
Bosch direct injection
Air cleaner
dual paper elements
Pre-heating
grid heater
Compression
17.5:1
Rated RPM
2500
Starter volts
12

Transmission

Transmission options
12-speed synchronized shuttle
24-speed partial power shift with synchronized shuttle
24-speed partial power shift with power shuttle
20-speed synchronized shuttle with creeper

Transmission — 12 forward and reverse synchronized shuttle

Type
synchronized shuttle
Gears
12 forward and reverse
Clutch
dry disc
Four gears (1-4) in three ranges (I, II, III) with synchronized mechanical shuttle. Separate right-hand gear and range levers. Left-hand shuttle lever on fender.

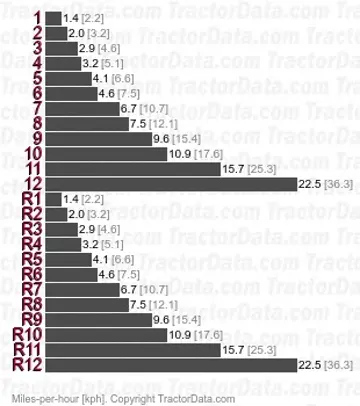

JX1080U synchronized shuttle speeds

Transmission — 24 forward and 12 reverse partial power shift with synchronized shuttle

Type
partial power shift with synchronized shuttle
Gears
24 forward and 12 reverse
Four gears (1-4) in three ranges (I, II, III) with two-speed (lo/hi) power shift. Push-button power shift located on the gear shift lever and provides a lower downshift for every forward gear. Mechanical synchronized shuttle.

Transmission — 24 forward and reverse partial power shift with power shuttle

Type
partial power shift with power shuttle
Gears
24 forward and reverse
Four gears (1-4) in three ranges (I, II, III) with push-button power shift and power shuttle. The reverser lever for the power shuttle is located on the steering column.

Transmission — 20 forward and 12 reverse synchronized shuttle with creeper

Type
synchronized shuttle with creeper
Gears
20 forward and 12 reverse
The creeper option adds an additional eight forward speeds to the basic 12x12 transmission.

Dimensions

CaseIH JX1080U Tires
Dimensions
2WD Wheelbase
92.2 inches 234 cm
4WD Wheelbase
91.1 inches 231 cm
2WD Front tread
55.4 to 85.6 inches 140 to 217 cm
4WD Front tread
56.1 to 84 inches 142 to 213 cm
Rear tread
64.3 to 83.9 inches 163 to 213 cm
CaseIH JX1080U Weight
2WD ROPS Shipping
6393 lbs 2899 kg
2WD cab Shipping
6834 lbs 3099 kg
4WD ROPS Shipping
7055 lbs 3200 kg
4WD cab Shipping
7496 lbs 3400 kg
2WD Operating
8675 lbs 3934 kg
4WD Operating
8,875 lbs 4025 kg
Ballasted
10650 lbs 4830 kg
CaseIH JX1080U Height
ROPS
104.5 inches 265 cm
84 inches (folded) 213 cm
Cab
102.5 inches 260 cm
Exhaust
117.5 inches 298 cm

Tests

OCED Tractor Test 2280
Diesel 12-speed 4WD September 1 - November 1, 2004 Link: OCED Tractor Test 2280 file
PTO performance
Power at rated engine speed
71.6 hp 53.4 kW
Fuel use
4.9 gal/hour 18.5 l/hour
Power at rated PTO speed
72.1 hp 53.8 kW
Fuel use
4.8 gal/hour 18.2 l/hour
Drawbar performance
Max power
58.2 hp 43.4 kW
Fuel use
4.8 gal/hour 18.2 l/hour
Gear 4-I used for power test.
Max pull
9,485 lbs 4302 kg
Gear 2-I used for pull test.

Attachments

Attachment overview
CaseIH LX252 loader
CaseIH LX232 loader
CaseIH Maxxima sales literature claimed a ten-minute mounting time to attach the loader to the tractor, and five minutes to mount an attachment to the loader.

Photos

CaseIH JX1080U tractor photo

CaseIH JX1080U tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih JX1080U based on its 80 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
3 to 4 Bottom (16")3 - 4 铧 (40 cm)Heavy DutySuitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing
7 to 8 ft (84-96 in)2.1 - 2.4 mHeavy DutyHeavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep
78 to 84 in200 - 215 cmHeavy DutyHeavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage
10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙Heavy DutyAggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage
4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机Heavy DutySilage and dry hay; 540 RPM PTO with slip-clutch.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih JX1080U.

Estimated Continuous Field Runtime: 8.1 hrs

Approximately 8.1 hours of continuous field operation at ~75% rated power on a full tank (33.5 gal / 126.8 L).

Estimated 75% Load Fuel Burn~4.2 gal/hr (15.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Caseih JX1080U Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih JX1080U.

Converted Equivalents:

Horsepower (HP)80 hp
Kilowatts (kW)59.7 kW
Metric Horsepower (PS / CV)81.1 PS
