CaseIH JX1085C

The CaseIH JX1085C is a tractor produced by Caseih. It is equipped with a 273.7 ci 4.5 L engine. The listed engine power is Diesel (gross): 80 hp / 59.7 kW. Transmission: 16 forward and reverse. Operating weight: 6,910 lbs 3134 kg.

Engine Power
Diesel (gross): 80 hp / 59.7 kW
Fuel & Capacities
23.5 gal 88.9 L
Transmission
16 forward and reverse
Operating Weight
6,910 lbs 3134 kg

Overview

CaseIH JX1085C tractor photo
2005 - 2008 JXC SeriesUtility tractor JXC Series Utility tractor
Production
Manufacturer
CaseIH
Utility tractor
Built in Jesi, Italy
CaseIH JX1085C Engine
CNH 4.5L 4-cyl diesel
Fuel tank
23.5 gal 88.9 L
Engine details ...
CaseIH JX1085C Power
Engine (gross)
80 hp 59.7 kW
PTO (claimed)
69 hp 51.5 kW
Drawbar (tested)
61.1 hp 45.6 kW
PTO (tested)
72.0 hp 53.7 kW
Performance test details ...
Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS. Cab optional.
Hydraulics
Type
open center
Pressure
2755 psi 190.0 bar
Valves
1 to 4
Pump flow
16.9 gpm 64.0 lpm
Steering flow
9.4 gpm 35.6 lpm
Tractor hitch
Rear Type
II
Control
mechanical lower-link draft sensing.
Rear lift
3960 lbs 1796 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
mechanical dry disc
Rear PTO Type
540 (1.375)
Dimensions & Tires
Wheelbase
86 inches 218 cm
Weight
6,910 lbs 3134 kg
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
120
Battery CCA
730
Battery volts
12

Engine

Engine Detail — 273.7 ci / 4.5 L Diesel

Manufacturer
CNH
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
273.7 ci 4.5 L
Bore/Stroke
4.094x5.197 inches 104 x 132 mm
Power (gross)
80 hp 59.7 kW
Fuel system
direct injection
Air cleaner
dual paper elements
Pre-heating
thermostart
Compression
17.5:1
Rated RPM
2300
Starter volts
12

Transmission

Transmission options
16-speed mechanical shuttle
16-speed power shuttle

Transmission — 16 forward and reverse mechanical shuttle

Type
mechanical shuttle
Gears
16 forward and reverse

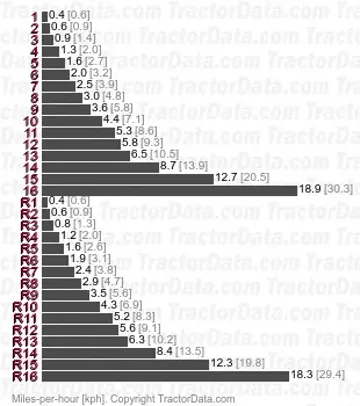

JX1085C mechanical shuttle speeds

Transmission — 16 forward and reverse power shuttle

Type
power shuttle
Gears
16 forward and reverse

Dimensions

CaseIH JX1085C Tires
Dimensions
Wheelbase
86 inches 218 cm
Length
157 inches 398 cm
Width
69.6 inches*Minimum width. 176 cm
Operating weight
6,910 lbs 3134 kg
Ballasted weight
7,980 lbs 3619 kg
CaseIH JX1085C Height
ROPS
95.6 inches 242 cm
75.6 inches (lowered) 192 cm
Cab
91.5 inches 232 cm

Tests

OCED Tractor Test 2352
Diesel 16-speed 2WD September 1 - October 1, 2005 Link: OCED Tractor Test 2352 file
PTO performance
Max power
72.0 hp 53.7 kW
Fuel use
4.8 gal/hour 18.2 l/hour
Power at rated engine speed
71.7 hp 53.5 kW
Fuel use
4.8 gal/hour 18.2 l/hour
Power at rated PTO speed
71.7 hp 53.5 kW
Fuel use
4.7 gal/hour 17.8 l/hour
Drawbar performance
Max power
61.1 hp 45.6 kW
Fuel use
4.8 gal/hour 18.2 l/hour

Photos

CaseIH JX1085C tractor photo

CaseIH JX1085C tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih JX1085C based on its 80 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
3 to 4 Bottom (16")3 - 4 铧 (40 cm)Heavy DutySuitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing
7 to 8 ft (84-96 in)2.1 - 2.4 mHeavy DutyHeavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep
78 to 84 in200 - 215 cmHeavy DutyHeavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage
10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙Heavy DutyAggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage
4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机Heavy DutySilage and dry hay; 540 RPM PTO with slip-clutch.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih JX1085C.

Estimated Continuous Field Runtime: 5.6 hrs

Approximately 5.6 hours of continuous field operation at ~75% rated power on a full tank (23.5 gal / 89 L).

Estimated 75% Load Fuel Burn~4.2 gal/hr (15.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Caseih JX1085C Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih JX1085C.

Converted Equivalents:

Horsepower (HP)80 hp
Kilowatts (kW)59.7 kW
Metric Horsepower (PS / CV)81.1 PS
