CaseIH JX55 Maxxima

The CaseIH JX55 Maxxima is a tractor produced by Caseih. It is equipped with a 165.4 ci 2.7 L engine. The listed engine power is Diesel (gross): 58 hp / 43.3 kW. Transmission: 20 forward and 12 reverse. Operating weight: 5655 to 6705 pounds.

Engine Power

Diesel (gross): 58 hp / 43.3 kW

Fuel & Capacities

24.3 gal 92.0 L

Transmission

20 forward and 12 reverse

Operating Weight

5655 lbs 2565 kg

Overview

	2002 - 2006 Model year 2002-20032003-2006 JX SeriesUtility tractorTurk Tractor built JX Series Utility tractor Turk Tractor built

Production
Distributor	CaseIH
Manufacturer	Turk Tractor
Utility tractor
Built in Turkey

CaseIH JX55 Engine
Iveco 2.7L 3-cyl diesel
Fuel tank	24.3 gal 92.0 L
Engine details ...

CaseIH JX55 Power
Engine (gross)	58 hp 43.3 kW
PTO (claimed)	42 hp 31.3 kW
Drawbar (tested)	37.8 hp 28.2 kW
PTO (tested)	45.1 hp 33.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Steering	hydrostatic power
Independent wet disc brakes
Two-post ROPS.

Hydraulics
Type	open center
Valves	3
Pump flow	13.6 gpm 51.5 lpm

Tractor hitch
Rear Type	II/I
Rear lift	6615 lbs*Advertised. 3775 lbs actual lift during testing 3000 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E
	540/1000 OptOptional

Dimensions & Tires
Wheelbase	83.4 inches 211 cm
Weight	5655 to 6705 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 165.4 ci / 2.7 L Diesel

Manufacturer	Iveco
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	165.4 ci 2.7 L
Bore/Stroke	3.937x4.528 inches 100 x 115 mm
Power (gross)	58 hp 43.3 kW
Air cleaner	paper element
Compression	17.0:1
Rated RPM	2500
Starter volts	12

Transmission

Transmission options
12-speed mechanical shuttle
20-speed creeper

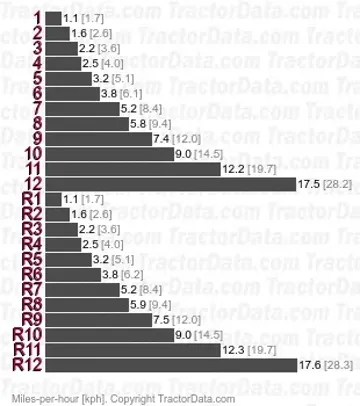

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse
Clutch	dry disc
Four gears (1-4) in three ranges with mechanical shuttle.

Transmission
Type	creeper
Gears	20 forward and 12 reverse

Dimensions

CaseIH JX55 Tires

Dimensions
Wheelbase	83.4 inches 211 cm
Length	154.9 inches 393 cm
Height	100.3 inches 254 cm
2WD Operating weight	5655 lbs 2565 kg
4WD Operating weight	6705 lbs 3041 kg

Tests

OCED Tractor Test 2009
165 diesel 12-speed 4WD February 2002 - May 2002, Link: OCED Tractor Test 2009 file
PTO performance
Power at rated engine speed	45.1 hp 33.6 kW
Fuel use	2.9 gal/hour 11.0 l/hour
Power at rated PTO speed	42.4 hp 31.6 kW
Fuel use	2.6 gal/hour 9.8 l/hour
Drawbar performance
Max power	37.8 hp 28.2 kW
Fuel use	2.9 gal/hour 11.0 l/hour
Gear 10 used for power test.

Photos

CaseIH JX55 Maxxima tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih JX55 Maxxima based on its 58 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih JX55 Maxxima.

Estimated Continuous Field Runtime: 8.1 hrs

Approximately 8.1 hours of continuous field operation at ~75% rated power on a full tank (24.3 gal / 92 L).

Estimated 75% Load Fuel Burn~3 gal/hr (11.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
