CaseIH Magnum 335

The CaseIH Magnum 335 is a tractor produced by Caseih. It is equipped with a 540 ci 8.9 L engine. The listed engine power is Diesel (listed): 330 hp / 246.1 kW. Transmission: powershift. Operating weight: 21350 lbs 9684 kg.

Engine Power

Diesel (listed): 330 hp / 246.1 kW

Fuel & Capacities

180 gal 681.3 L

Transmission

powershift

Operating Weight

21350 lbs 9684 kg

Overview

	2008 - 2011 Magnum SeriesRow-Crop tractor Magnum Series Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $240,486 in 2010

CaseIH Magnum 335 Engine
CNH 8.9L 6-cyl diesel
Engine details ...

CaseIH Magnum 335 Power
Engine	330 hp 246.1 kW
PTO (claimed)	275 hp 205.1 kW
Drawbar (tested)	243.25 hp 181.4 kW
PTO (tested)	314.96 hp 234.9 kW
Performance test details ...

Mechanical
Four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Cab standard with heat and air-conditioning. Optional luxury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls.

Capacity
Fuel	180 gal 681.3 L
Hydraulic system	45.5 gal 172.2 L

Hydraulics
Type	PFC
Capacity	45.5 gal 172.2 L
Valves	3 to 5
Total flow	46 gpm 174.1 lpm
	62 gpm (High-Flow) 234.7 lpm
	78 gpm (Twin-Flow) 295.2 lpm

Tractor hitch
Rear Type	IVN/III
Rear lift	18900 lbs 8573 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000
	540/1000 OptOptional

Dimensions & Tires
Wheelbase	118.3 inches 300 cm
Weight	21350 lbs 9684 kg
Front tire	380/80R38
Rear tire	480/80R50
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	150
	175 OptOptional
Battery volts	12

References

Magnum Series Tractors published in 2007, by CaseIH

Engine

Engine Detail — 540 ci / 8.9 L Diesel

Manufacturer	CNH
Configuration	turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	540 ci 8.9 L
Bore/Stroke	4.488x5.689 inches 114 x 145 mm
Power	330 hp 246.1 kW
Compression	17.6:1
Rated RPM	2100
Starter volts	12
Oil capacity	22 qts 20.8 L
Coolant capacity	26 qts 24.6 L

Transmission

Transmission options
18-speed full powershift
19-speed full power shift
23-speed creeper

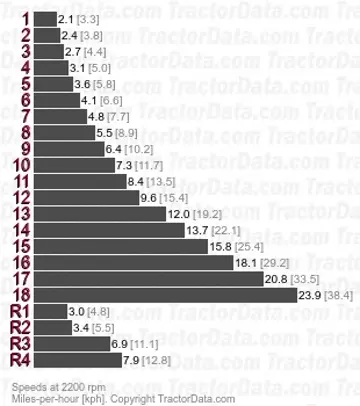

Transmission — powershift

Transmission	powershift
Type	full powershift
Gears	18 forward and 4 reverse

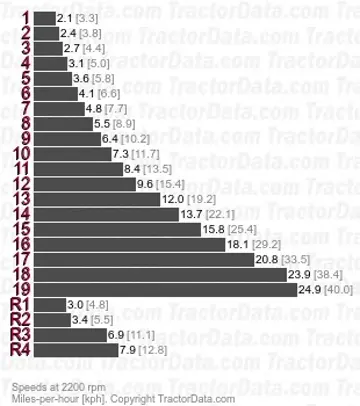

Transmission — 19 forward and 4 reverse full power shift

Type	full power shift
Gears	19 forward and 4 reverse
Adds lower RPM transport gear to power shift transmission.

Transmission
Type	creeper
Gears	23 forward and 6 reverse

Dimensions

CaseIH Magnum 335 Tires
Ag front	380/80R38
Ag rear	480/80R50

Dimensions
Wheelbase	118.3 inches 300 cm
Height (cab)	128.5 inches 326 cm
Shipping weight	21350 lbs 9684 kg
Max weight	37125 lbs 16839 kg
Bar rear axle	4.5 by 120 inches 114 by 3048 mm
Front tread	60 to 88 inches 152 to 223 cm
Rear tread	64 to 129 inches 162 to 327 cm

Tests

OCED Tractor Test 1936
Diesel 19-speed 4WD September 17 - 26, 2008 Link: OCED Tractor Test 1936 file
PTO performance
Max power	314.96 hp 234.9 kW
Fuel use	18.5 gal/hour 70.0 l/hour
Power at rated engine speed	277.67 hp 207.1 kW
Fuel use	16.9 gal/hour 64.0 l/hour
Power at rated PTO speed	305.50 hp 227.8 kW
Fuel use	17.1 gal/hour 64.7 l/hour
Drawbar performance
Max power	243.25 hp 181.4 kW
Fuel use	16.8 gal/hour 63.6 l/hour
Gear 7 used for power test.
Max pull	38,024 lbs 17247 kg
Gear 2 used for pull test.

Photos

CaseIH Magnum 335 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Magnum 335 based on its 330 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Magnum 335.

Estimated Continuous Field Runtime: 10.5 hrs

Approximately 10.5 hours of continuous field operation at ~75% rated power on a full tank (180 gal / 681.4 L).

Estimated 75% Load Fuel Burn~17.2 gal/hr (65 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
