CaseIH Maxxum 140

The CaseIH Maxxum 140 is a tractor produced by Caseih. It is equipped with a 411 ci 6.7 L engine. The listed engine power is Diesel (listed): 139 hp / 103.7 kW; Diesel (listed): 5.6 hp / 4.2 kW. Transmission: Econo. Operating weight: 10912 to 12180 pounds.

Overview

	2007 - 2014 Model year 2007-20112012-2014 Maxxum SeriesRow-Crop tractor Maxxum Series Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Basildon, England
Original price	$103,363 (2011)

CaseIH Maxxum 140 Engine
FPT 6.7L 6-cyl diesel
Fuel tank	66 gal 249.8 L
Engine details ...

CaseIH Maxxum 140 Power
Engine	139 hp 103.7 kW
PTO (claimed)	120 hp 89.5 kW
Drawbar (tested)	107.4 hp 80.1 kW
PTO (tested)	140.3 hp 104.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic optional
Cab standard with air-conditioning. Suspended deluxe cab optional. Optional heated seat with air suspension.

Hydraulics
Type	closed center PFC
Valves	2 to 4
Pump flow	26.5 gpm 100.3 lpm
Total flow	37 gpm 140.0 lpm
Steering flow	10.5 gpm 39.7 lpm

Tractor hitch
Rear Type	2/3N
Control	electronic draft control
Rear lift	12,185 lbs 5527 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	104.7 inches 265 cm
Weight	10912 to 12180 pounds
Front tire	11.00-16
Rear tire	18.4R38 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
Battery CCA	960
Battery volts	12

Engine

Engine Detail — 411 ci / 6.7 L Diesel

Manufacturer	FPT
Configuration	turbocharged aftercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	411 ci 6.7 L
Bore/Stroke	4.094x5.197 inches 104 x 132 mm
Emissions	Tier 3
Power	139 hp 103.7 kW
Fuel system	electronic high pressure common rail
Cooling system	viscous fan
Air cleaner	dual paper elements
Compression	17.5:1
Rated RPM	2200
Starter volts	12
Starter power	5.6 hp 4.2 kW

Transmission

Transmission options
16-speed partial power shift
17-speed partial power shift

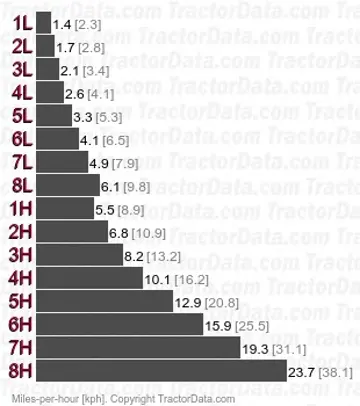

Transmission — AutoShift

Transmission	AutoShift
Type	partial power shift
Gears	16 forward and reverse
Clutch	hydraulic wet disc
Four power shift gears in four ranges. Autoshift provides automatic shifting to maintain engine load.

Transmission — Econo

Transmission	Econo
Type	partial power shift
Gears	17 forward and 16 reverse
The Econo transmission provides an overdrive 17th gear for transport speeds.

Dimensions

CaseIH Maxxum 140 Tires
Standard tires (ag)	Front: 11.00-16. Rear: 18.4R38 (2WD)
	Front: 14.9R28. Rear: 18.4R38 (4WD)

Dimensions
Wheelbase	104.7 inches 265 cm
Height (cab)	114.1 inches 289 cm
Shipping weight	10,912 lbs 4949 kg
Operating weight	12,180 lbs 5524 kg
Rear axle	98 inch length 2489 mm (optional bar axle)
Front tread	63.2 to 86.2 inches 160 to 218 cm (2WD)

Tests

OCED Tractor Test 2448
Diesel 16-speed 4WD January 2008 - May 2008, Link: OCED Tractor Test 2448 file
PTO performance
Max power	140.3 hp 104.6 kW
Fuel use	8.1 gal/hour 30.7 l/hour
Power at rated engine speed	127.1 hp 94.8 kW
Fuel use	7.7 gal/hour 29.1 l/hour
Power at rated PTO speed	134.6 hp 100.4 kW
Fuel use	8.0 gal/hour 30.3 l/hour
Drawbar performance
Max power	107.4 hp 80.1 kW
Fuel use	7.8 gal/hour 29.5 l/hour
Gear 9 used for power test.
Max pull	11,870 lbs 5384 kg
Gear 1 used for pull test.

Attachments

Attachment overview
CaseIH L760 loader
CaseIH L750 loader
The model L760 loader it fitted to the Maxxum 140 Pro while the L750 fits the base model. Both loaders are available with optional mechanical self-leveling.
