CaseIH MX210 Magnum

The CaseIH MX210 Magnum is a tractor produced by Caseih. It is equipped with a 504.5 ci 8.3 L engine. The listed engine power is Diesel (listed): 200 hp / 149.1 kW. Transmission: 18 forward and 4 reverse. Operating weight: 18700 to 20195 pounds.

Engine Power

Diesel (listed): 200 hp / 149.1 kW

Fuel & Capacities

130 gal 492.1 L

Transmission

18 forward and 4 reverse

Operating Weight

18700 to 20195 pounds

Overview

	2003 - 2006 Magnum SeriesRow-Crop tractor Magnum Series Row-Crop tractor

Production
Manufacturer	CaseIH (a part of CNH)
Row-Crop tractor
Built in Racine, Wisconsin, USA

Variants
TG210	similar New Holland model

CaseIH MX210 Engine
CDC 8.3L 6-cyl diesel
Engine details ...

CaseIH MX210 Transmission

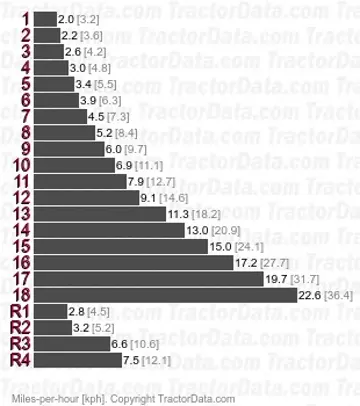

18-speed full power shift
Transmission details ...

CaseIH MX210 Power
Engine	200 hp 149.1 kW
PTO (claimed)	170 hp 126.8 kW
Drawbar (tested)	145.12 hp 108.2 kW
PTO (tested)	198.11 hp 147.7 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Surveyor Cab standard with air-conditioning. Optional automatic climate control.

Capacity
Fuel	130 gal 492.1 L
	160 gal (optional) 605.6 L
Hydraulic system	45.5 gal 172.2 L

Hydraulics
Type	closed center pressure flow compensated with parallel priority (PFC)
Capacity	45.5 gal 172.2 L
Pressure	2950 psi 203.4 bar
Valves	3 to 5
Total flow	38.6 gpm 146.1 lpm
	53.1 gpm (optional) 201.0 lpm

Tractor hitch
Rear Type	III/IIIN
Control	electronic draft control
Rear lift	13,960 lbs 6332 kg
	15,970 lbs (optional) 7243 kg
Front Hitch	optional
Front lift	7,170 lbs 3252 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)
	540/1000 (1.375 optional)
Engine RPM	540@2000
	1000@1994

Dimensions & Tires
Wheelbase	120 inches 304 cm
	118.3 inches (4WD) 300 cm
Weight	18700 to 20195 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	135
Charging volts	12
Batteries	2
Battery CCA	1000
Battery volts	12

References

MX Series Magnum Tractors published in 2003, by CaseIH

Engine

Engine Detail — 504.5 ci / 8.3 L Diesel

Manufacturer	CDC
Configuration	turbocharged diesel, 6-cylinder 12-valve, liquid-cooled inline
Displacement	504.5 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Emissions	Tier II
Power	200 hp 149.1 kW
Air cleaner	dual paper elements
Compression	17.0:1
Rated RPM	2000
Torque	1329 lb-ft 1802.1 Nm
Torque RPM	1400
Starter volts	12
Oil capacity	22 qts 20.8 L
Coolant capacity	24 qts 22.7 L

CaseIH MX210 Engine

Transmission

Transmission — 18 forward and 4 reverse full power shift

Type	full power shift
Gears	18 forward and 4 reverse
Clutch	electro-hydraulic wet discs

Dimensions

CaseIH MX210 Tires

Dimensions
Wheelbase	120 inches 304 cm
	118.3 inches (4WD) 300 cm
Height (cab)	124.6 inches 316 cm
Rear axle	4 by 114 inches 101 by 2895 mm
Rear axle	4 by 120 inches 101 by 3048 mm
Front tread	60 to 88 inches 152 to 223 cm

CaseIH MX210 Weight
Shipping	18,700 lbs (2WD) 8482 kg
	19,700 lbs (4WD) 8935 kg
Operating	20,195 lbs (4WD) 9160 kg
Ballasted	22,705 lbs 10298 kg

Tests

OCED Tractor Test 1825
Diesel 18-speed 4WD September 26 - October 27, 2003 Link: OCED Tractor Test 1825 file
PTO performance
Max power	198.11 hp 147.7 kW
Fuel use	11.0 gal/hour 41.6 l/hour
Power at rated engine speed	172.54 hp 128.7 kW
Fuel use	10.8 gal/hour 40.9 l/hour
Drawbar performance
Max power	145.12 hp 108.2 kW
Fuel use	10.8 gal/hour 40.9 l/hour
Gear 7 used for power test.
Max pull	19,579 lbs 8881 kg
Gear 4 used for pull test.

Photos

CaseIH MX210 Magnum

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih MX210 Magnum based on its 200 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
