CaseIH Steiger 330

The CaseIH Steiger 330 is a tractor produced by Caseih. It is equipped with a 540 ci 8.9 L engine. The listed engine power is Diesel (listed): 330 hp / 246.1 kW. Transmission: 16 forward and 2 reverse. Operating weight: 32295 lbs 14649 kg.

Engine Power

Diesel (listed): 330 hp / 246.1 kW

Fuel & Capacities

200 gal 757.0 L

Transmission

16 forward and 2 reverse

Operating Weight

32295 lbs 14649 kg

Overview

	2007 - 2008 Four-wheel Drive (4WD) tractor

Production
Manufacturer	CaseIH
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA

CaseIH Steiger 330 Engine
CNH 8.9L 6-cyl diesel
Fuel tank	200 gal 757.0 L
Engine details ...

CaseIH Steiger 330 Transmission
16-speed full power shift
Transmission details ...

CaseIH Steiger 330 Power
Engine	330 hp 246.1 kW
PTO (claimed)	269 hp 200.6 kW
Drawbar (tested)	258.63 hp 192.9 kW
PTO (tested)	323.31 hp 241.1 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary
Articulated power steering
Integrated hydraulic wet disc brakes
Cab standard

Hydraulics
Type	PFC
Pump flow	40 gpm 151.4 lpm
	55 gpm*Optional high capacity pump. 208.2 lpm
	90 gpm*Optional TwinFlow 340.7 lpm

Tractor hitch
Rear Type	IVN
Rear lift (at 24"/610mm)	15669 lbs 7107 kg

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	139 inches 353 cm
Weight	32295 lbs 14649 kg
Front tire	480/80R46
Rear tire	480/80R46
Full dimensions and tires ...

Engine

Engine Detail — 540 ci / 8.9 L Diesel

Manufacturer	CNH
Configuration	turbocharged aftercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	540 ci 8.9 L
Bore/Stroke	4.488x5.689 inches 114 x 145 mm
Power	330 hp 246.1 kW
Air cleaner	dual paper elements
Compression	16.6:1
Rated RPM	2000
Starter volts	12

Transmission

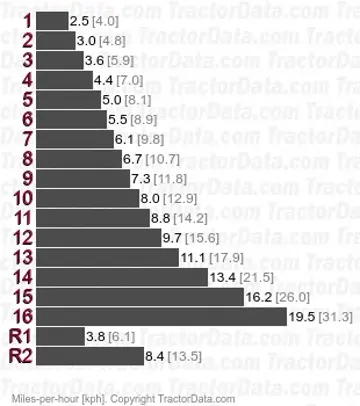

Transmission — 16 forward and 2 reverse full power shift

Type	full power shift
Gears	16 forward and 2 reverse

Dimensions

CaseIH Steiger 330 Tires
Ag front	480/80R46
Ag rear	480/80R46

Dimensions
Wheelbase	139 inches 353 cm
Operating weight	32295 lbs 14649 kg
Max weight	39000 lbs 17690 kg

Tests

OCED Tractor Test 1907
Diesel 16-speed 4WD September 19 - October 22, 2007 Link: OCED Tractor Test 1907 file
PTO performance
Max power	323.31 hp 241.1 kW
Fuel use	18.0 gal/hour 68.1 l/hour
Power at rated engine speed	285.76 hp 213.1 kW
Fuel use	17.0 gal/hour 64.3 l/hour
Drawbar performance
Max power	258.63 hp 192.9 kW
Fuel use	16.9 gal/hour 64.0 l/hour
Gear 5 used for power test.
Max pull	31197 lbs 14150 kg
Gear 3 used for pull test.

Photos

CaseIH Steiger 330 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Steiger 330 based on its 330 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Steiger 330.

Estimated Continuous Field Runtime: 11.7 hrs

Approximately 11.7 hours of continuous field operation at ~75% rated power on a full tank (200 gal / 757.1 L).

Estimated 75% Load Fuel Burn~17.2 gal/hr (65 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
