caterpillar d2

OverviewEngineTransmissionDimensionsTestsPhotos
Caterpillar D2 tractor photo
1938 - 1957 Agricultural Crawler tractor
1938 - 1957
Agricultural Crawler tractor
1938 - 1957
Agricultural Crawler tractor
1938 - 1957
Agricultural Crawler tractor
Tractor Tests
NTTL 322: 251 diesel 5-speed crawler
NTTL 418: 252 diesel 5-speed crawler
NTTL 553: 252 diesel 5-speed crawler
Nebraska Tractor Test 322

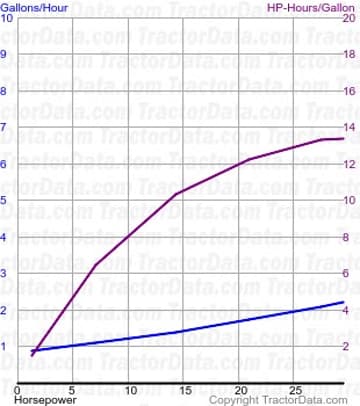

D2 fuel use from test 322
D2 fuel use from test 322
D2 fuel use from test 322
D2 fuel use from test 322
Nebraska Tractor Test 322
251 diesel 5-speed crawler July 24 - August 4, 1939 Link: Nebraska Tractor Test 322 file
Belt power (max)
30 hp 22.4 kW
PTO performance
Power at rated engine speed
27.5 hp 20.5 kW
Fuel use
2.1 gal/hour 7.9 l/hour
Drawbar performance
Max power
25.2 hp 18.8 kW
Gear 1 used for power test.
Max pull
5,903 lbs 2677 kg
Nebraska Tractor Test 418

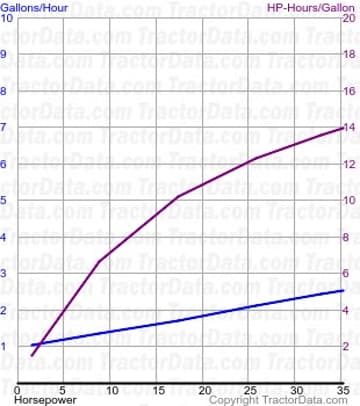

D2 fuel use from test 418
D2 fuel use from test 418
D2 fuel use from test 418
D2 fuel use from test 418
Nebraska Tractor Test 418
252 diesel 5-speed crawler July 11 - 26, 1949 Link: Nebraska Tractor Test 418 file
Belt power (max)
36.02 hp 26.9 kW
PTO performance
Power at rated engine speed
32.9 hp 24.5 kW
Fuel use
2.4 gal/hour 9.1 l/hour
Drawbar performance
Max power
30.31 hp 22.6 kW
Gear 2 used for power test.
Max pull
6,778 lbs 3074 kg
Gear 1 used for pull test.
Nebraska Tractor Test 553

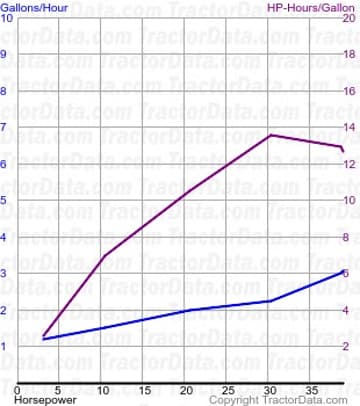

D2 fuel use from test 553
D2 fuel use from test 553
D2 fuel use from test 553
D2 fuel use from test 553
Nebraska Tractor Test 553
252 diesel 5-speed crawler July 25 - 30, 1955 Link: Nebraska Tractor Test 553 file
Belt power (max)
41.86 hp 31.2 kW
PTO performance
Power at rated engine speed
29 hp 21.6 kW
Fuel use
2.7 gal/hour 10.2 l/hour
Drawbar performance
Max power
36.62 hp 27.3 kW
Gear 2 used for power test.
Max pull
7,413 lbs 3362 kg
Gear 1 used for pull test.
