caterpillar d6
 | 1941 - 1947
Agricultural Crawler tractor | 1941 - 1947 | Agricultural Crawler tractor |
|---|---|---|---|
1941 - 1947 | |||
Agricultural Crawler tractor | |||
1941 - 1947 | |
|---|---|
Agricultural Crawler tractor |
Tractor Tests | |
|---|---|
NTTL 374: 468 diesel 5-speed crawler | |
NTTL 416: 525 diesel 5-speed crawler | |
NTTL 555: 525 diesel 5-speed crawler | |
NTTL 747: diesel 5-speed crawler |

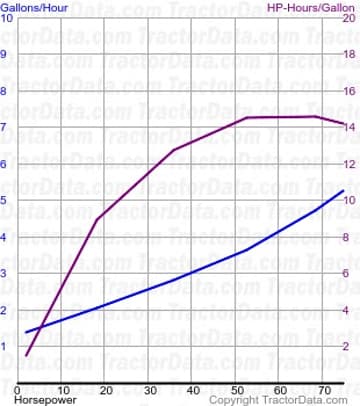

Nebraska Tractor Test 374 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 374 | |
|---|---|
468 diesel 5-speed crawler
September 6 - 13, 1941
Link: Nebraska Tractor Test 374 file | |
Belt power (max) | 78.03 hp
58.2 kW |
Belt fuel use (max) | 5.7 gal/hour
21.6 l/hour |
Drawbar performance | |
Max power | 63.34 hp
47.2 kW |
Gear 2 used for power test. | |
Max pull | 16,674 lbs
7563 kg |
Gear 1 used for pull test. | |

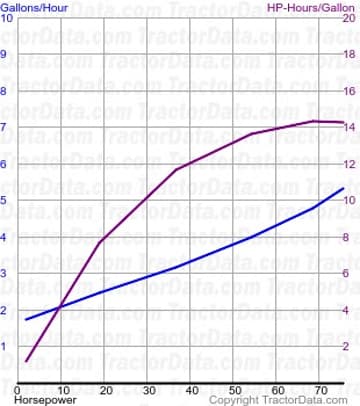

Nebraska Tractor Test 416 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 416 | |
|---|---|
525 diesel 5-speed crawler
July 11 - 23, 1949
Link: Nebraska Tractor Test 416 file | |
Belt power (max) | 76.90 hp
57.3 kW |
Belt fuel use (max) | 5.5 gal/hour
20.8 l/hour |
Drawbar performance | |
Max power | 61.76 hp
46.1 kW |
Gear 2 used for power test. | |
Max pull | 16,222 lbs
7358 kg |
Gear 1 used for pull test. | |

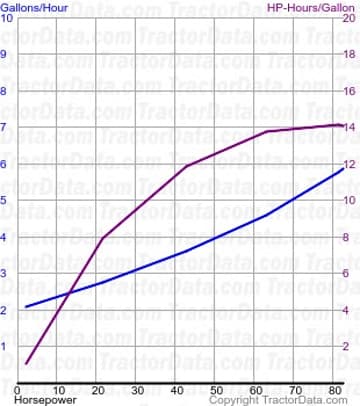

Nebraska Tractor Test 555 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 555 | |
|---|---|
525 diesel 5-speed crawler
July 25 - August 12, 1955
Link: Nebraska Tractor Test 555 file | |
Belt power (max) | 92.52 hp
69.0 kW |
Belt fuel use (max) | 6.7 gal/hour
25.4 l/hour |
Drawbar performance | |
Max power | 73.34 hp
54.7 kW |
Gear 2 used for power test. | |
Max pull | 17,486 lbs
7931 kg |
Gear 1 used for pull test. | |
Nebraska Tractor Test 747 | |
|---|---|
Diesel 5-speed crawler
1960
Link: Nebraska Tractor Test 747 file | |
Drawbar performance | |
Max power | 74.82 hp
55.8 kW |
Fuel use | 6.1 gal/hour
23.1 l/hour |
Gear 2 used for power test. | |
Max pull | 17,687 lbs
8022 kg |
Gear 1 used for pull test. | |
