caterpillar d8
 | 1937 - 1965
Model year 1937-19411945-19551955-19581958-1965
Agricultural Crawler tractor | 1937 - 1965 | Model year 1937-19411945-19551955-19581958-1965 | Agricultural Crawler tractor |
|---|---|---|---|---|
1937 - 1965 | ||||
Model year 1937-19411945-19551955-19581958-1965 | ||||
Agricultural Crawler tractor | ||||
1937 - 1965 | |
|---|---|
Model year 1937-19411945-19551955-19581958-1965 | |
Agricultural Crawler tractor |
Tractor Tests | |
|---|---|
NTTL 314: diesel 6-speed crawler | |
NTTL 357: diesel 6-speed crawler |

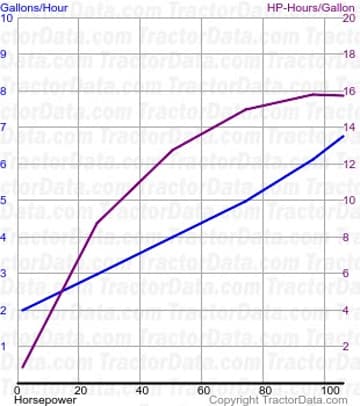

Nebraska Tractor Test 314 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 314 | |
|---|---|
Diesel 6-speed crawler
November 28, 1939 - November 30, 1938
Link: Nebraska Tractor Test 314 file | |
Belt power (max) | 109.64 hp
81.8 kW |
Belt fuel use (max) | 7.0 gal/hour
26.5 l/hour |
Drawbar performance | |
Max power | 96.67 hp
72.1 kW |
Gear 2 used for power test. | |
Max pull | 26110 lbs
11843 kg |
Gear 1 used for pull test. | |

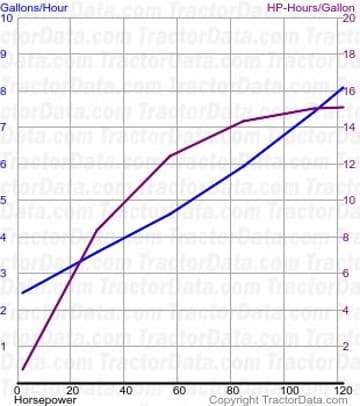

Nebraska Tractor Test 357 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 357 | |
|---|---|
Diesel 6-speed crawler
October 11 - 16, 1940
Link: Nebraska Tractor Test 357 file | |
Belt power (max) | 127.93 hp
95.4 kW |
Belt fuel use (max) | 8.6 gal/hour
32.6 l/hour |
Drawbar performance | |
Max power | 110.06 hp
82.1 kW |
Gear 2 used for power test. | |
Max pull | 26208 lbs
11887 kg |
Gear 1 used for pull test. | |
