TractorData Logo
TractorData

caterpillar forty

OverviewEngineTransmissionDimensionsTests
No photo available
1934 - 1936 Agricultural Crawler tractor
1934 - 1936
Agricultural Crawler tractor
1934 - 1936
Agricultural Crawler tractor
1934 - 1936
Agricultural Crawler tractor
Tractor Tests
NTTL 244: gasoline (850 RPM) 4-speed crawler
NTTL 245: gasoline (1000 RPM) 4-speed crawler
Nebraska Tractor Test 244

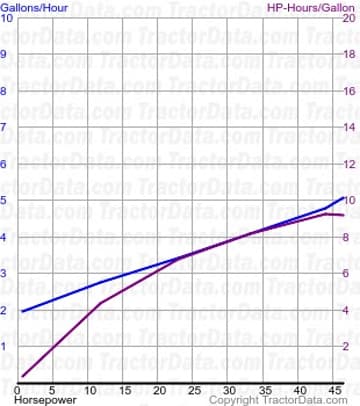

Forty fuel use from test 244
Forty fuel use from test 244
Forty fuel use from test 244
Forty fuel use from test 244
Nebraska Tractor Test 244
Gasoline (850 RPM) 4-speed crawler September 16 - 20, 1935 Link: Nebraska Tractor Test 244 file
Belt power (max)
48.57 hp 36.2 kW
Belt fuel use (max)
5.9 gal/hour 22.3 l/hour
Drawbar performance
Max power
41.78 hp 31.2 kW
Gear 2 used for power test.
Max pull
9692 lbs 4396 kg
Gear 1 used for pull test.
Nebraska Tractor Test 245

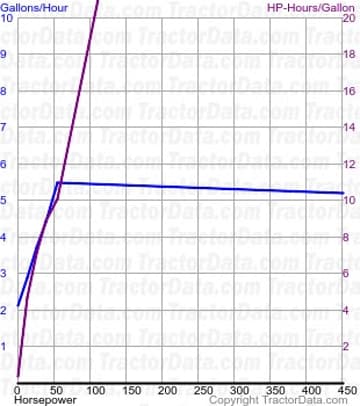

Forty fuel use from test 245
Forty fuel use from test 245
Forty fuel use from test 245
Forty fuel use from test 245
Nebraska Tractor Test 245
Gasoline (1000 RPM) 4-speed crawler September 18 - 23, 1935 Link: Nebraska Tractor Test 245 file
Belt power (max)
56.42 hp 42.1 kW
Belt fuel use (max)
6.9 gal/hour 26.1 l/hour
Drawbar performance
Max power
48.91 hp 36.5 kW
Gear 2 used for power test.
Max pull
9466 lbs 4293 kg
Gear 1 used for pull test.
