CBT 8240
The CBT 8240 is a tractor produced by Cbt. It is equipped with a 230.7 ci 3.8 L engine. The rated power output is 80 hp 59.7 kW. Transmission: 4 forward and reverse. Operating weight: 8,400 lbs 3810 kg.
Engine Power
80 hp
59.7 kW
Fuel & Capacities
Diesel
Transmission
4 forward and reverse
Operating Weight
8,400 lbs
3810 kg
Cbt 8240 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1984 - 1988 | 1984 - 1988 |
|---|
Production | |
|---|---|
Manufacturer | CBT |
Built in Brazil | |
CBT 8240 Power | |
|---|---|
Engine | 80 hp
59.7 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | hydrostatic power |
Hydraulic disc brakes | |
Open operator station. | |
Capacity | |
|---|---|
Hydraulic system | 10.6 gal
40.1 L |
Steering | 1.85 qts
1.8 L |
Hydraulics | |
|---|---|
Capacity | 10.6 gal
40.1 L |
Steering cap. | 1.85 qts
1.8 L |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 3,307 lbs
1500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 82.68 inches
210 cm |
Weight | 8,400 lbs
3810 kg |
Front tire | 9.00-16 |
Rear tire | 18.4/15-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 30 |
Charging volts | 14 |
Batteries | 2 |
Battery volts | 6 |
Battery AH | 95 |
References | |
|---|---|
 | |
8240 published by Companhia Brasileria de Tractores |
Engine
Engine options | |
|---|---|
Perkins diesel | |
Perkins 3.8L 4-cyl ethanol |
Engine Detail — Diesel
Manufacturer | Perkins |
Fuel Type | Diesel |
CBT 8240 Engine | |
|---|---|
 |
Engine Detail — 230.7 ci / 3.8 L
Manufacturer | Perkins E-4.236 |
Configuration | 4-cylinder, liquid-cooled |
ethanol | |
Displacement | 230.7 ci
3.8 L |
Bore/Stroke | 3.875x5.00 inches
98 x 127 mm |
Power | 80 hp
59.7 kW |
Air cleaner | dual dry |
Rated RPM | 2200 |
Torque | 211.2 lb-ft
286.4 Nm |
Torque RPM | 1400 |
Starter volts | 12 |
Starter power | 4 hp
3.0 kW |
Oil capacity | 7.5 qts
7.1 L |
Coolant capacity | 15.22 qts
14.4 L |
Transmission
Transmission options | |
|---|---|
6-speed | |
4-speed |
Transmission — 6 forward and 2 reverse
Gears | 6 forward and 2 reverse |
Clutch | dry disc |
Oil capacity | 42.3 qts
40.0 L |
With 18.4/15-30 rear tires. | |
 | |
Transmission — 4 forward and reverse
Gears | 4 forward and reverse |
Clutch | dry disc |
Oil capacity | 42.3 qts
40.0 L |
With 18.4/15-30 rear tires. | |
 | |
Dimensions
CBT 8240 Tires | |
|---|---|
Ag front | 9.00-16 |
10.00-16 | |
Ag rear | 18.4/15-30 |
Dimensions | |
|---|---|
Wheelbase | 82.68 inches
210 cm |
Length | 157.5 inches
400 cm |
Width | 79.76 inches
202 cm |
Height | 107.9 inches
274 cm |
Operating weight | 8,400 lbs
3810 kg |
Ballasted weight | 10,550 lbs
4785 kg |
Front tread | 55.9 to 75.6 inches
141 to 192 cm |
Rear tread | 55.1 to 83 inches
139 to 210 cm |
Photos

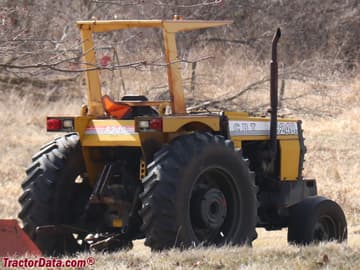

CBT model 8240 tractor.
Cbt 8240 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cbt 8240.
Converted Equivalents:
Horsepower (HP)80 hp
Kilowatts (kW)59.7 kW
Metric Horsepower (PS / CV)81.1 PS
