chamberlain 4090
 | 1985 - 1986
90 SeriesRow-Crop tractor | 1985 - 1986 | 90 Series | Row-Crop tractor |
|---|---|---|---|---|
1985 - 1986 | ||||
90 Series | ||||
Row-Crop tractor | ||||
1985 - 1986 | |
|---|---|
90 Series | |
Row-Crop tractor |
Transmission | |
|---|---|
Transmission | Hi-Lo |
Type | partial power shift |
Gears | 12 forward and 4 reverse |
Clutch | 14-inch dry disc |
Oil capacity | 45.4 qts
43.0 L |
Three gears (1-3) in two ranges (Slow-Fast) with hydraulic Hi-Lo power shift. Range shifts are synchronized with the clutch. Tractor must be stopped to shift gears (1-3 and R). | |

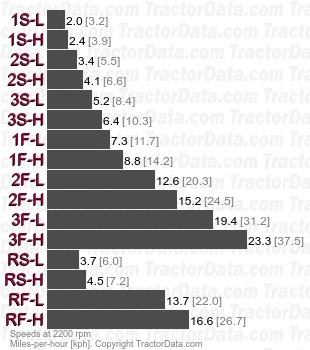

Speeds | |
|---|---|
With 23.1x34 rear tires. | |
 |
Shift Pattern | |
|---|---|
 |
